Rim Lock Door Knobs Explained

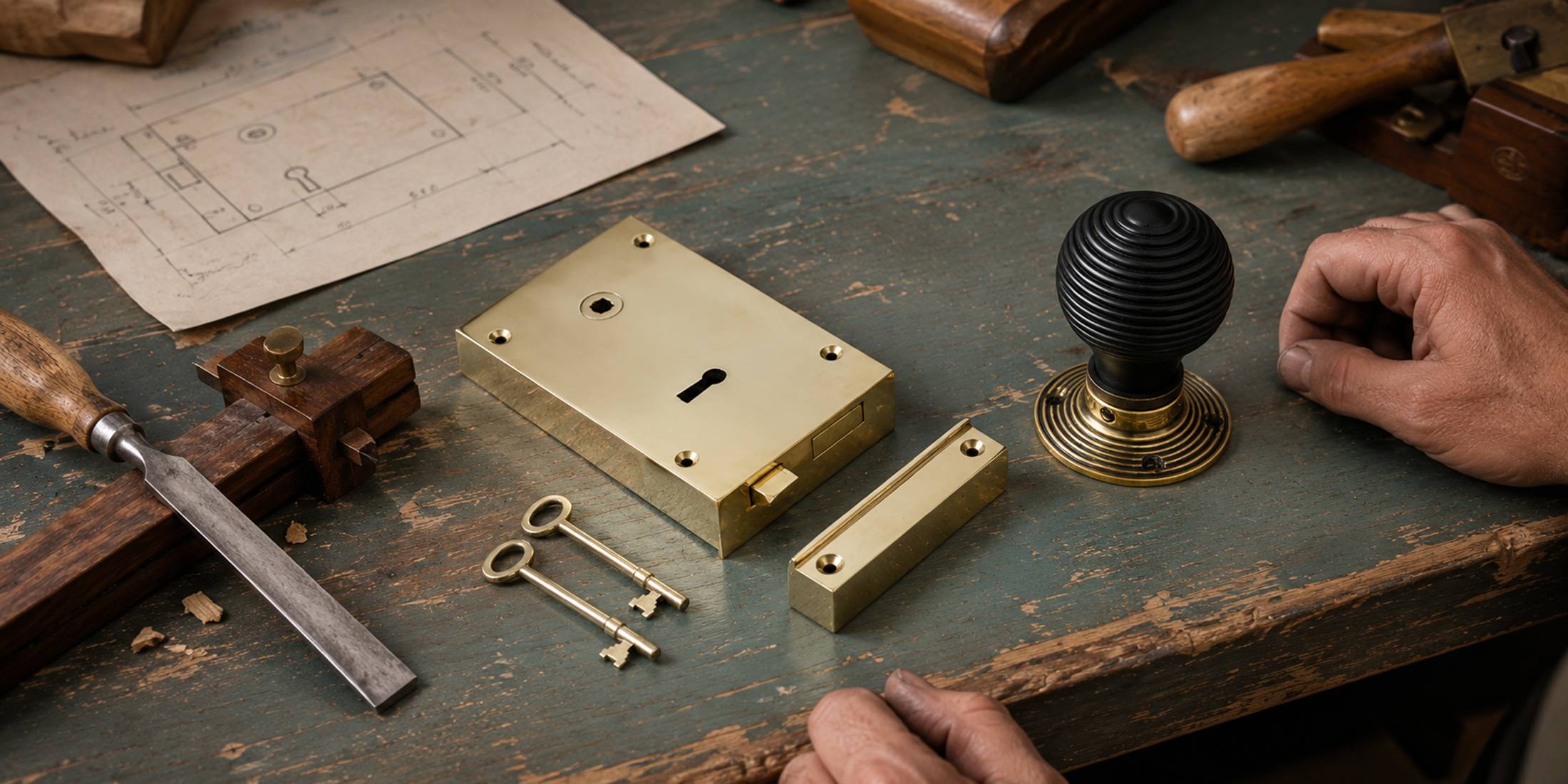

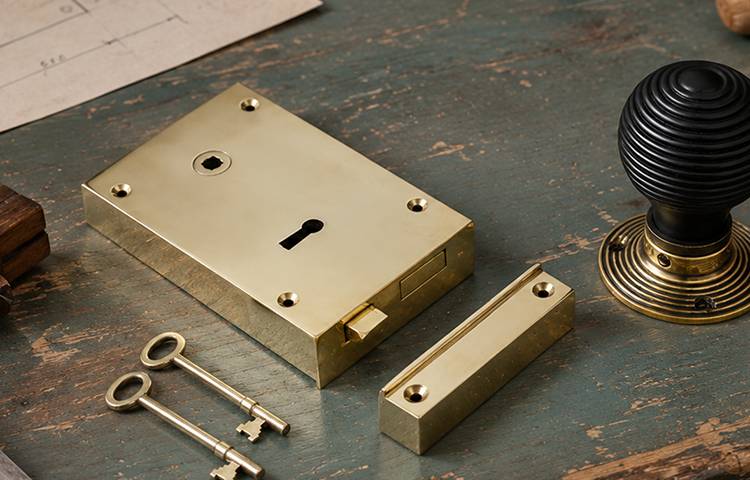

Rim lock door knobs are designed to work with traditional surface-mounted rim locks. Although they may look similar to standard mortice door knobs, the fitting method is different. The lock case is visible on the face of the door, so the knob, spindle and rose arrangement all need to suit that type of lock.

This guide explains what makes rim lock door knobs different, why one side usually does not need a rose, what to measure before ordering, and how to avoid common fitting mistakes. You can browse suitable products in our Rim Lock Door Knobs Collection.

For a wider overview of door knob types, latches and locks, read our main guide: Door Knobs Explained: The Complete Guide.

Table of Contents

What Makes Rim Lock Door Knobs Different?

A rim lock door knob is made for a traditional rim lock rather than a modern mortice latch or mortice lock. A rim lock is fixed to the face of the door, so the lock case remains visible after fitting.

This changes how the door knob needs to be installed. On the rim lock side, the knob normally sits directly against the lock case. On the opposite side, the knob is fitted to the timber door, usually with a rose plate.

The spindle also needs to suit the installation. A rim lock spindle must pass through the door and the rim lock case, so it is often longer than the spindle supplied with a standard mortice knob set.

This is why it is important to choose a dedicated rim lock door knob set. It is not simply a question of style. The knob must suit the lock type, spindle length and fixing arrangement.

Why Does One Side Not Need a Rose?

A rose is the plate that sits behind a door knob. On a standard mortice door knob set, both knobs normally have roses because both sides are fixed to the timber face of the door.

With a rim lock, one side is different. The lock case is already fixed to the face of the door and the knob sits against the lock itself. Adding a rose between the knob and the rim lock would usually look wrong and may prevent the knob from sitting correctly.

On the other side of the door, there is no rim lock case. That side usually needs a rose plate so the knob can be fixed neatly and securely to the timber surface.

This is one of the easiest ways to recognise a proper rim lock knob set: one side is designed to work with the lock case, while the other side is designed to fix to the door.

How Does the Spindle Pass Through a Rim Lock?

The spindle, sometimes called a mortice bar, is the square bar that connects the two knobs and operates the latch inside the lock. Most modern and replica rim locks use an 8mm square spindle opening.

With a rim lock, the spindle has more work to do than on a standard mortice latch. It must pass through the thickness of the door, through the rim lock case, and still leave enough length for the second knob to be secured properly.

Many rim lock door knob sets are supplied with a longer spindle for this reason. Some sets have the spindle fixed into one knob, which helps keep the connection secure and correctly positioned.

When fitting, make sure the spindle moves freely through the rim lock follower and that the knob is not being forced out of alignment. If the spindle is too short, too tight or badly aligned, the lock may feel stiff or fail to return correctly.

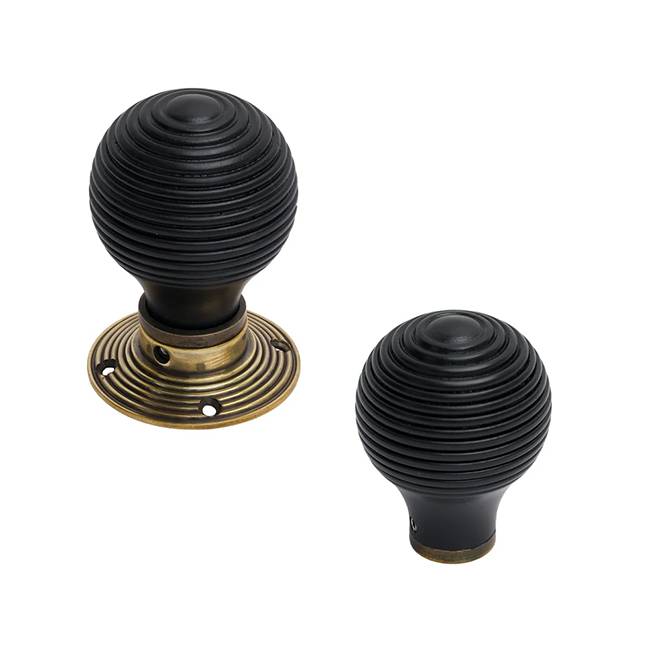

Beehive Rim Door Knobs Ebonised

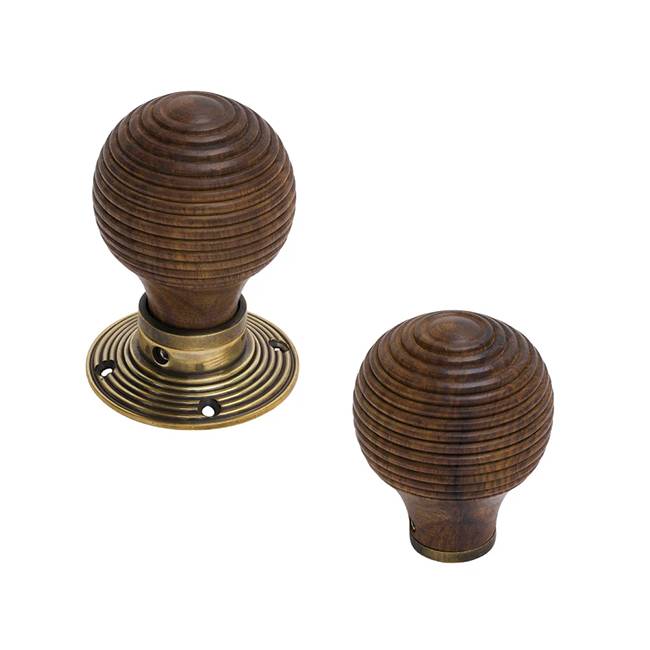

Beehive Rim Door Knobs Rosewood

What Is a Loose Rose?

A loose rose is a separate rose plate that is not permanently attached to the door knob. This gives more flexibility during installation and can be useful with traditional rim locks.

Because the rose is separate, it can usually be left off the lock side of the door, allowing the knob to sit directly against the rim lock case. The rose can then be used on the opposite side where the knob fixes to the timber.

This differs from a fixed rose, where the rose plate is permanently attached to the knob. Fixed rose designs are often excellent for mortice latches, but they are not always suitable for rim locks.

Loose rose door knobs can provide a practical solution when working with period doors, older locks or traditional installations where a little more adjustment is useful.

Why Fixed Rose Knobs May Not Work

Fixed rose door knobs have the rose plate permanently attached to the knob. This is common on many standard mortice door knob sets and works well when both sides of the knob are fixed to the timber face of the door.

On a rim lock, however, the lock side is different. If the knob has a fixed rose, the rose may end up sitting on top of the rim lock case. This can look out of place and may prevent the knob from sitting close enough to the lock.

There is also usually no practical way to screw the rose into the metal lock case in the same way you would fix it to timber. The result can be a poor fit, unnecessary movement or a lock that does not operate cleanly.

Some fixed rose knobs may be adaptable, but this should never be assumed. If the door has a rim lock, a purpose-made rim lock door knob set is usually the safer choice.

How to Check Whether You Have a Rim Lock

The easiest way to check whether you have a rim lock is to look at the face of the door. If you can see a metal lock case fixed to the surface, rather than hidden inside the edge of the door, it is likely to be a rim lock.

A rim lock is usually visible on one side of the door. It may be made from cast iron, steel or brass and will normally include a latch operated by the knob. Many rim locks also include a key-operated deadbolt.

A mortice lock or mortice latch is different. It is fitted into a recess cut into the edge of the door, so most of the mechanism is hidden. In that case, standard mortice door knobs are usually the correct option.

If you are comparing the two systems, read Rim Lock vs Mortice Door Knobs.

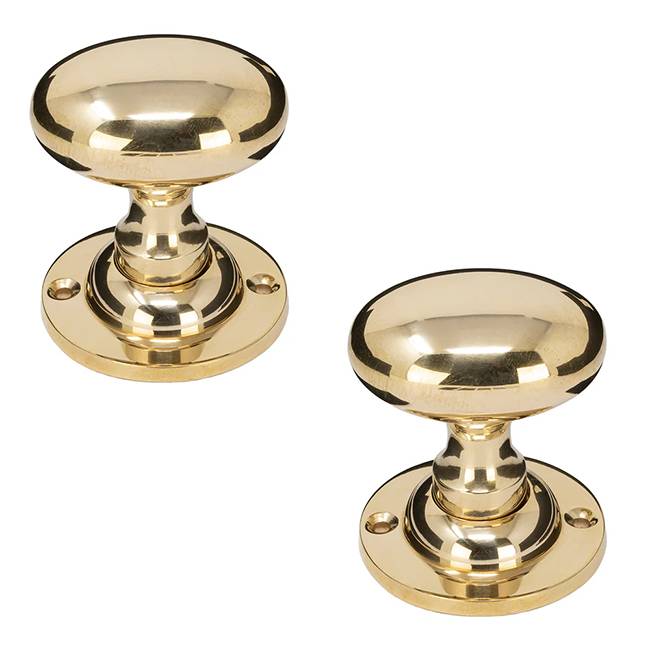

Oval Polished Brass Door Knobs

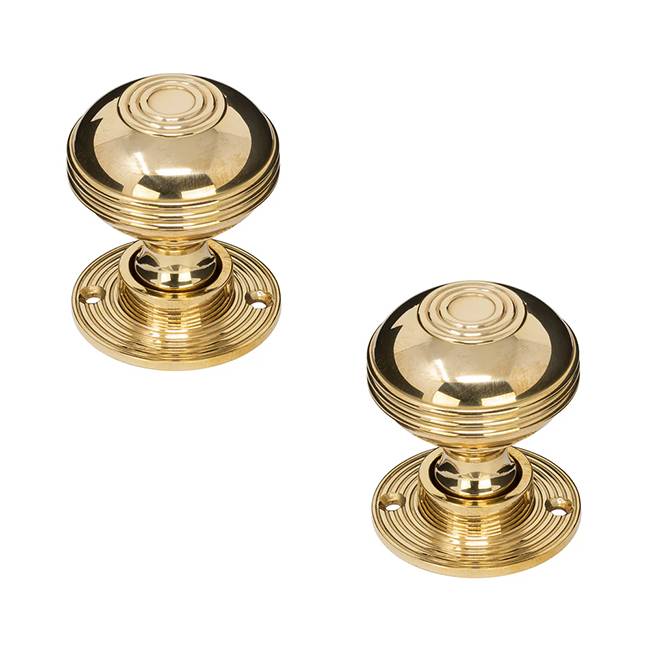

Ringed Polished Brass Door Knobs

What to Measure Before Ordering

Before ordering rim lock door knobs, take a few simple measurements. This can prevent most fitting problems.

• Door thickness: measure the thickness of the door itself.
• Rim lock depth: measure how far the rim lock case projects from the face of the door.
• Spindle size: most modern rim locks use an 8mm square spindle, but it is worth checking.
• Spindle length: the spindle must pass through the door, the lock case and still allow the second knob to be secured.
• Available fixing space: check there is enough flat timber on the reverse side for the rose plate.

It is also worth checking the overall proportions of the door. Rim locks often look best on traditional panelled doors with enough timber around the lock case. On very narrow modern doors, the lock may fit mechanically but appear visually crowded.

Which Door Knobs Suit Rim Locks?

Several traditional door knob styles work well with rim locks. Wooden door knobs are one of the most common choices, especially in rosewood and ebonised finishes. These suit Victorian, Edwardian and cottage-style interiors particularly well.

Beehive door knobs are also a popular option. Their ringed profile works well with traditional rim locks and period doors. For more detail on this style, read What Are Beehive Door Knobs?.

Cast iron door knobs can be a good match for black rim locks, especially in cottages, utility rooms and traditional interiors. Brass door knobs may suit brass rim locks or rooms where other brass hardware is already being used.

The main point is to choose the correct rim lock version. The same style may be available in both rim and mortice versions, so check the product description before ordering.

Rim Locks and Period Doors

Rim locks are often found on older doors because they require less timber to be removed than mortice locks. This can make them a practical choice for period properties, especially where the doors are thinner than modern internal doors.

Cutting a new mortice into an old door can weaken the structure if there is not enough timber around the lock body. Retaining or replacing a rim lock can preserve more of the original door while keeping the traditional appearance.

If you are restoring a Victorian property, rim locks are often part of the overall door style. They work naturally with wooden, beehive, cast iron and antique brass door knobs, depending on the room and the finish used elsewhere.

For wider period-property advice, read Choosing Door Knobs for a Victorian House.

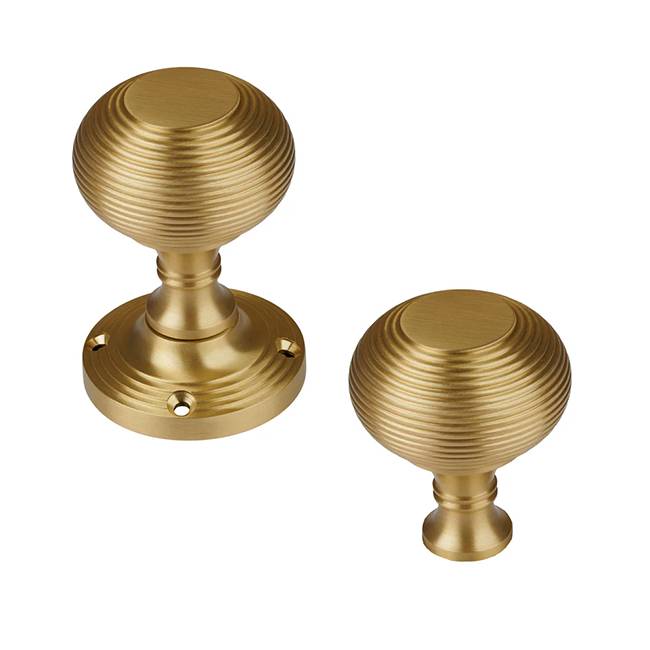

Reeded Rim Door Knob Satin Brass

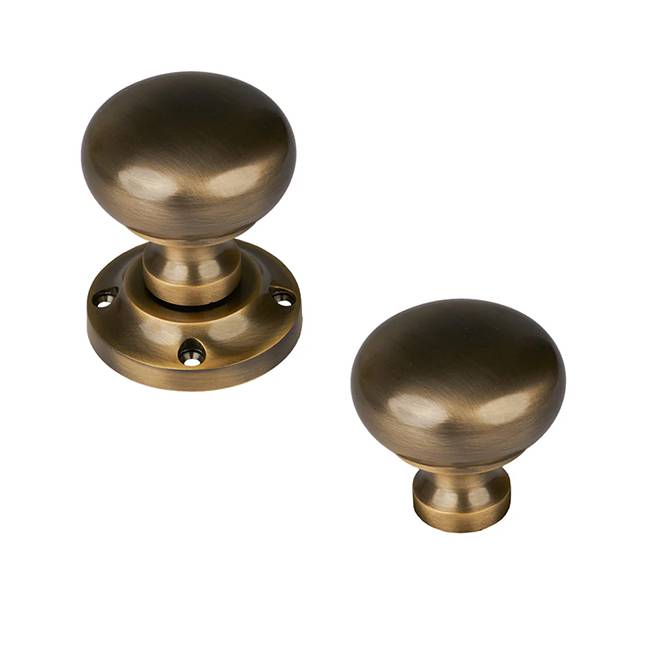

Victoria Rim Door Knob Aged Brass

Related Reading

These supporting guides explain related door knob choices in more detail:

• Door Knobs Explained: The Complete Guide
• How to Choose Door Knobs
• Rim Lock vs Mortice Door Knobs
• Door Knobs With Locks Explained
• What Are Beehive Door Knobs?
• Wooden Door Knobs Explained
• Cast Iron Door Knobs Explained
• Antique Brass Door Knobs Explained
• Choosing Door Knobs for a Victorian House

Conclusion

Rim lock door knobs are designed for surface-mounted rim locks. The visible lock case, spindle length and rose arrangement all affect whether the finished installation will work correctly.

If the lock body is visible on the face of the door, choose a proper rim lock door knob set rather than assuming a standard mortice knob will fit. Check the door thickness, rim lock depth and spindle length before ordering.

To choose a suitable set, browse our Rim Lock Door Knobs Collection.

FAQ

What is a rim lock door knob?

A rim lock door knob is a door knob designed to operate a surface-mounted rim lock. It normally uses a suitable spindle length and a rose arrangement that allows one knob to sit against the lock case.

Do rim locks need special door knobs?

Yes, in most cases. Rim locks usually need dedicated rim lock door knobs because the lock case sits on the face of the door and changes how the knob is fitted.

Can any door knob fit a rim lock?

Not always. Standard mortice door knobs may have fixed roses or shorter spindles that are not suitable for a rim lock. Always check that the knob set is designed for rim lock use.

What is a loose rose on a door knob?

A loose rose is a separate rose plate that is not permanently attached to the knob. This can be useful with rim locks because the rose can often be left off the lock side of the door.

Why does a rim knob only have one rose?

The knob on the rim lock side normally sits directly against the visible lock case, so a rose is not usually needed on that side. The opposite side of the door normally uses a rose fixed to the timber.

How do I measure for rim lock door knobs?

Measure the door thickness, the depth of the rim lock case and the spindle size. The spindle must be long enough to pass through the door and rim lock while leaving enough length for the second knob to be fixed securely.
