Traditional H and HL Hinges: A Complete Guide to Heritage Joinery

Author: Carl Benson

Carl is the founder of Suffolk Latch Company, with a background in engineering and over 20 years' experience in home hardware. He works closely with suppliers and designers to develop quality ironmongery. Read Carl's full bio.

Introduction

H and HL hinges are visible, surface-mounted fittings for timber doors and cupboards. An H hinge has a compact outline; an HL hinge has an extended L-shaped fixing plate. Choosing between them means checking the door and its fixing surfaces, not simply deciding which pattern looks more substantial.

This guide explains the differences, available sizes and fitting checks for our traditional mild-steel range. Browse the H & HL Hinges collection for the current products. The black beeswax and pewter models discussed here are for internal use.

Table of Contents

1. What are H and HL hinges?
2. What is the difference between H and HL hinges?
3. The history of H and HL hinges
4. Where can H and HL hinges be used?
5. How to fit H and HL hinges
6. What finishes and sizes are available?
7. Can H and HL hinges be used outside?
8. Why choose H and HL hinges rather than butt hinges?
9. Matching hinges with other traditional hardware
10. Conclusion
11. FAQ
12. Further reading

What are H and HL hinges?

Both names describe the outline of the hinge when opened flat. An H hinge has two upright leaves joined at the pivot. An HL hinge has an L-shaped leaf extending across part of the door.

Our H hinges sit against the door face and surround rather than being installed in the door edge like a conventional butt hinge. The hinge pattern remains visible after fitting. Compare black beeswax H hinges with pewter H hinges for the two finishes.

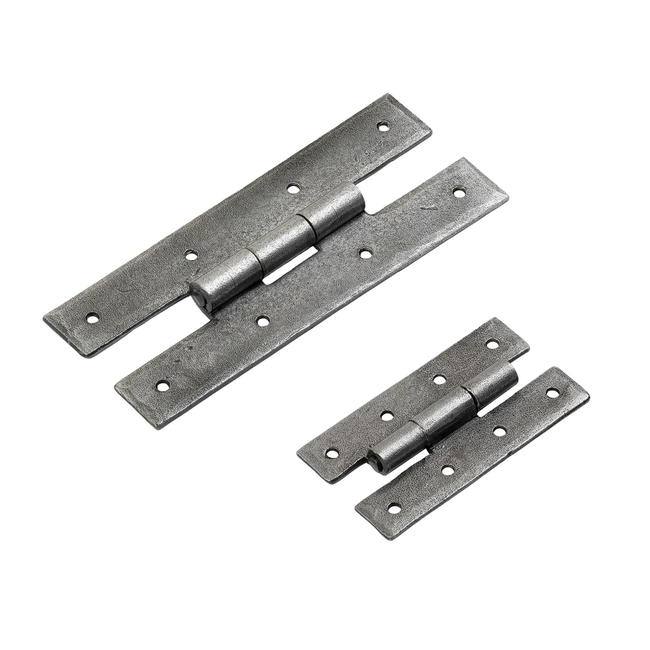

Hand forged H hinge in pewter finish

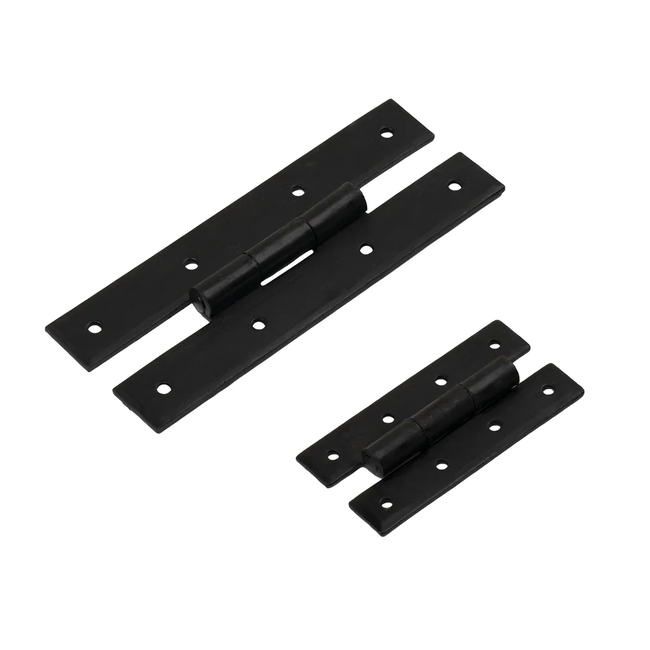

Hand forged H hinge in black beeswax finish

What is the difference between H and HL hinges?

The extended arm of an HL hinge creates a different fixing footprint. It is intended to run parallel to the top or bottom edge of the door, so check the available timber and hinge orientation.

The arm alone does not establish a safe working load or guarantee that a sagging door will be corrected. Door width, weight, construction, frame condition and fixings all need consideration. Compare black beeswax HL hinges and pewter HL hinges before choosing a size.

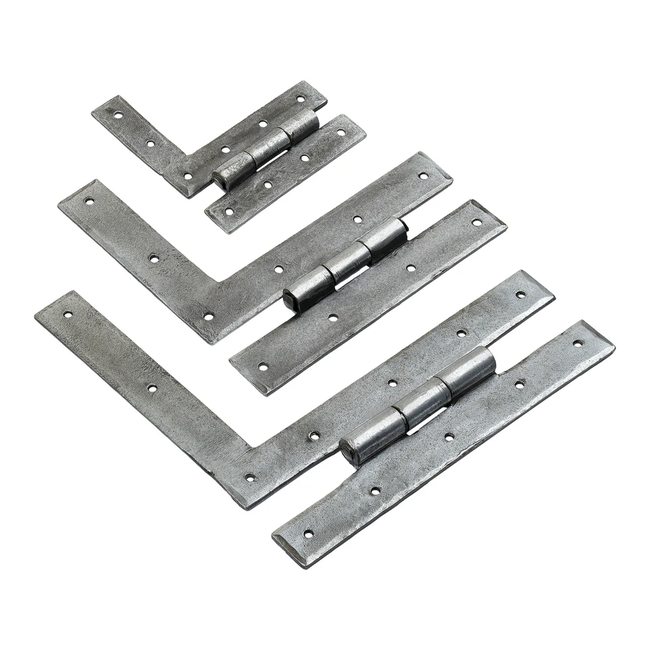

Hand forged HL hinges in pewter finish

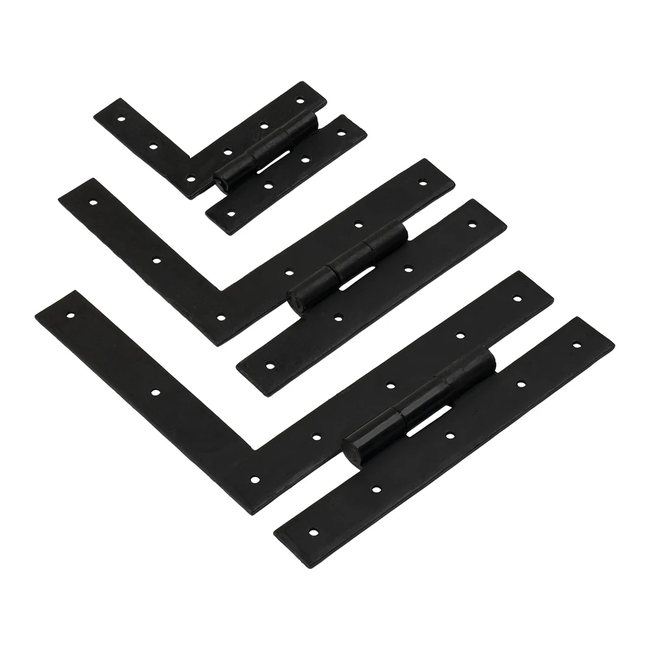

Hand forged HL hinges in black beeswax finish

The history of H and HL hinges

H and HL patterns are associated with historic joinery, but their shape alone does not date a door. Historic England’s Pond Cottage listing describes HL hinges as a type typically found from the late seventeenth into the early nineteenth century. That is evidence of their historical use, not a precise invention date.

For an older building, consider the existing door and surviving fittings before replacing them. Historic England’s advice on altering doors explains why historic doors and their details are worth retaining. Seek appropriate advice before changing important original joinery.

Where can H and HL hinges be used?

The current range includes options for internal doors and cupboards. The smaller sizes suit smaller joinery where their dimensions and fixing arrangement are appropriate; larger sizes are listed for suitable doors and larger cupboards.

For replacement work, compare the fixing holes, available flat surfaces and opening clearance as well as the visible shape. A hinge of the same nominal size will not necessarily fit the old screw holes. Check unfamiliar or heavily loaded arrangements before ordering.

How to fit H and HL hinges

These products are designed to lie flat against the door and surround. Surface mounting does not remove the need to check the relationship between those surfaces, the pivot and the opening clearance.

1. Support the door securely and check its clearances. Inspect the timber at each proposed fixing point, including old screw holes.
2. Offer up the hinges in the intended orientation. Check that the pivots align and that the door can move without the leaves or surrounding joinery binding.
3. Mark the fixing positions. Select pilot holes and screw lengths appropriate to the supplied screws, timber and door thickness; avoid drilling or screwing through the face.
4. Fit and tighten carefully, then check the movement again. Confirm the hinge quantity and arrangement for the actual door rather than automatically adding a central H hinge.

The listings specify matching wood screws. Check the selected pack and fitting details rather than assuming every version has the same screw head or handed arrangement.

What finishes and sizes are available?

All four H/HL product listings identify mild steel. Black beeswax gives a dark finish; pewter is a silver-grey finish on steel, not solid pewter.

H hinges are listed in nominal 4 and 7 inch sizes. HL hinges are listed in nominal 4, 7 and 9 inch sizes. The smaller options are described for cupboards; larger options are described for suitable internal doors or larger cupboards.

A size label is not a weight rating. Check the drawing and fixing dimensions for the exact product. The black beeswax listings advise occasional beeswax maintenance; follow the care instructions for the selected finish rather than treating either finish as maintenance-free.

Can H and HL hinges be used outside?

Not the four black beeswax and pewter models covered by this guide: their product listings advise against external use. A covered porch or sheltered position does not override that restriction.

Other manufacturers may offer H or HL hinges with different finish specifications. Check the exact product rather than applying another range’s exterior guidance to ours. For an exterior door or gate, choose hardware expressly suitable for that location and exposure.

Why choose H and HL hinges rather than butt hinges?

Choose H or HL hinges where their visible outline and surface-fitting arrangement suit the joinery. Conventional butt hinges provide a different fitting arrangement and a less prominent appearance.

Neither pattern is automatically better for every old or new door. Let the door construction, available fixing surfaces and intended use guide the choice.

Matching hinges with other traditional hardware

For a different visible hinge pattern on suitable cupboards, compare butterfly hinges. The following photographs show butterfly hinges, not H or HL hinges.

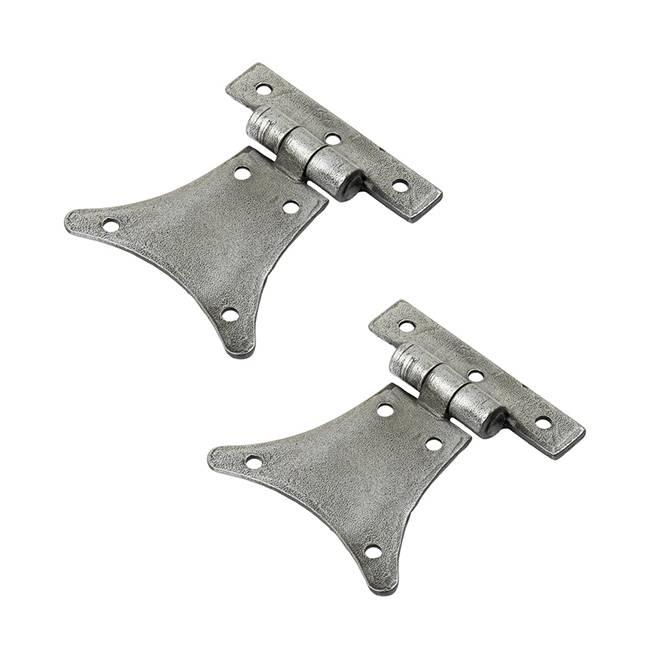

Hand forged half butterfly hinge in a pewter finish

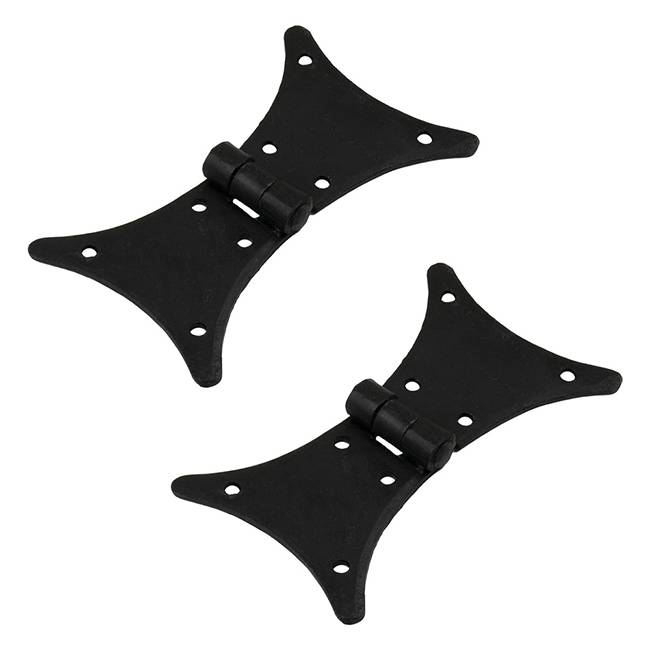

Hand forged full butterfly hinge in a black beeswax finish

Pull handles and cupboard latches serve different functions from hinges. The examples below show other fittings to consider alongside the chosen hinge; check each product’s dimensions, operation and intended use separately.

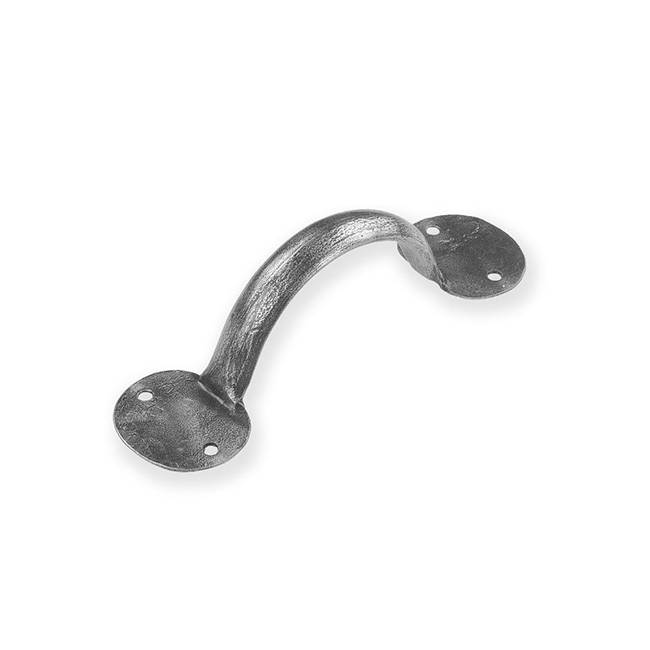

Hand forged traditional penny end pull 6 inch in pewter finish

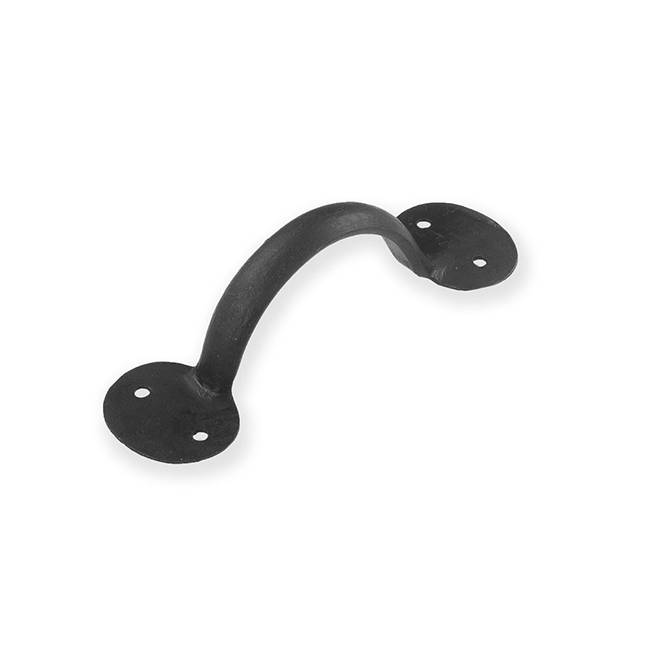

Hand forged traditional penny end pull 6 inch in black beeswax finish

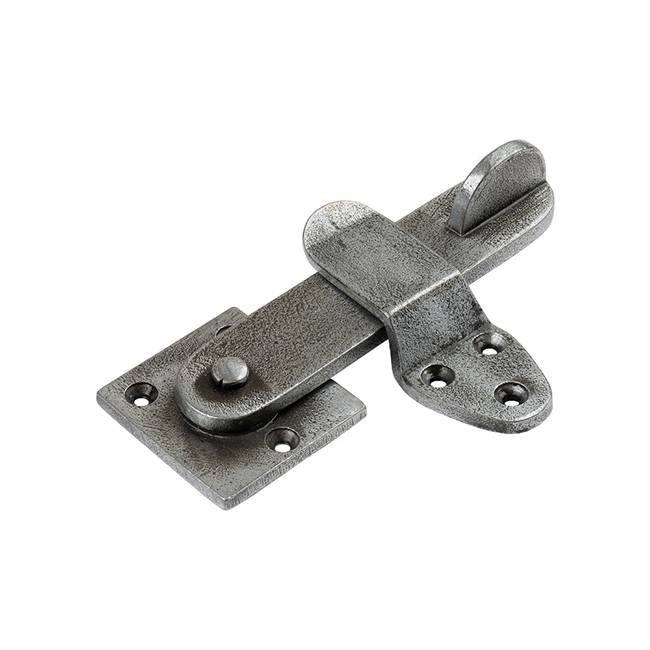

Traditional privacy cupboard latch in pewter finish

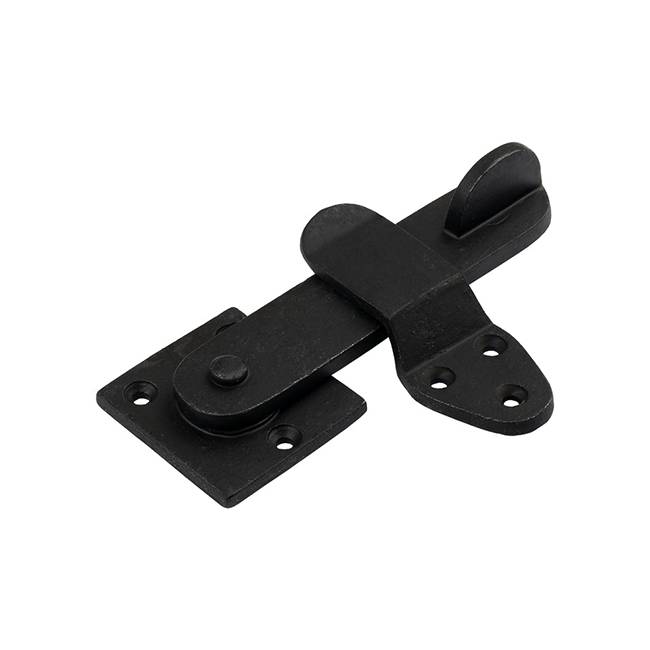

Traditional privacy cupboard latch in black beeswax finish

Conclusion

Choose H and HL hinges by matching their shape, dimensions and fixing arrangement to the door and frame. Keep this black beeswax and pewter range indoors, and confirm any unusual hinge combination before fitting.

Use the H & HL Hinges collection to compare the current choices, and the wider Traditional Door Hardware collection for coordinating fittings.

FAQ

Do H and HL hinges need to be recessed?

Our H and HL hinges are intended to lie flat against the door face and surround, not to be installed as butt hinges. Check the joinery and opening clearance before cutting timber or reusing an existing recess.

Are H and HL hinges reversible?

Check the chosen product’s orientation and the door arrangement rather than assuming universal reversibility. The Black HL listing specifies an opposite-hand pair. Confirm the selected pair and fitting direction before marking the holes.

Can I use both H and HL hinges on the same door?

A mixed arrangement may be appropriate where it is specified for the exact products and door. Do not assume that an H hinge at the top and an HL hinge at the bottom, or a central H added to two HL hinges, is suitable for every installation. Ask for product-specific advice.

Can I use these hinges in a sheltered porch?

The black beeswax and pewter H and HL hinges in this guide are not recommended for external use. Do not treat shelter from rain as approval for an outdoor installation.

Further reading

• H and HL hinges in the range explainer — an overview of the fitting family.
• What Size T Hinges Should I Use? — for projects comparing T hinges; its strap-sizing guidance should not be transferred to H or HL hinges.
