H & HL Hinges

Hand-forged H and HL hinges for internal timber doors and cupboards, in black beeswax or pewter. Choose H hinges in 4 or 7 inch sizes, or HL hinges in 4, 7 or 9 inch sizes. Supplied in pairs with matching wood screws.

4 Products

4 Products

Filters

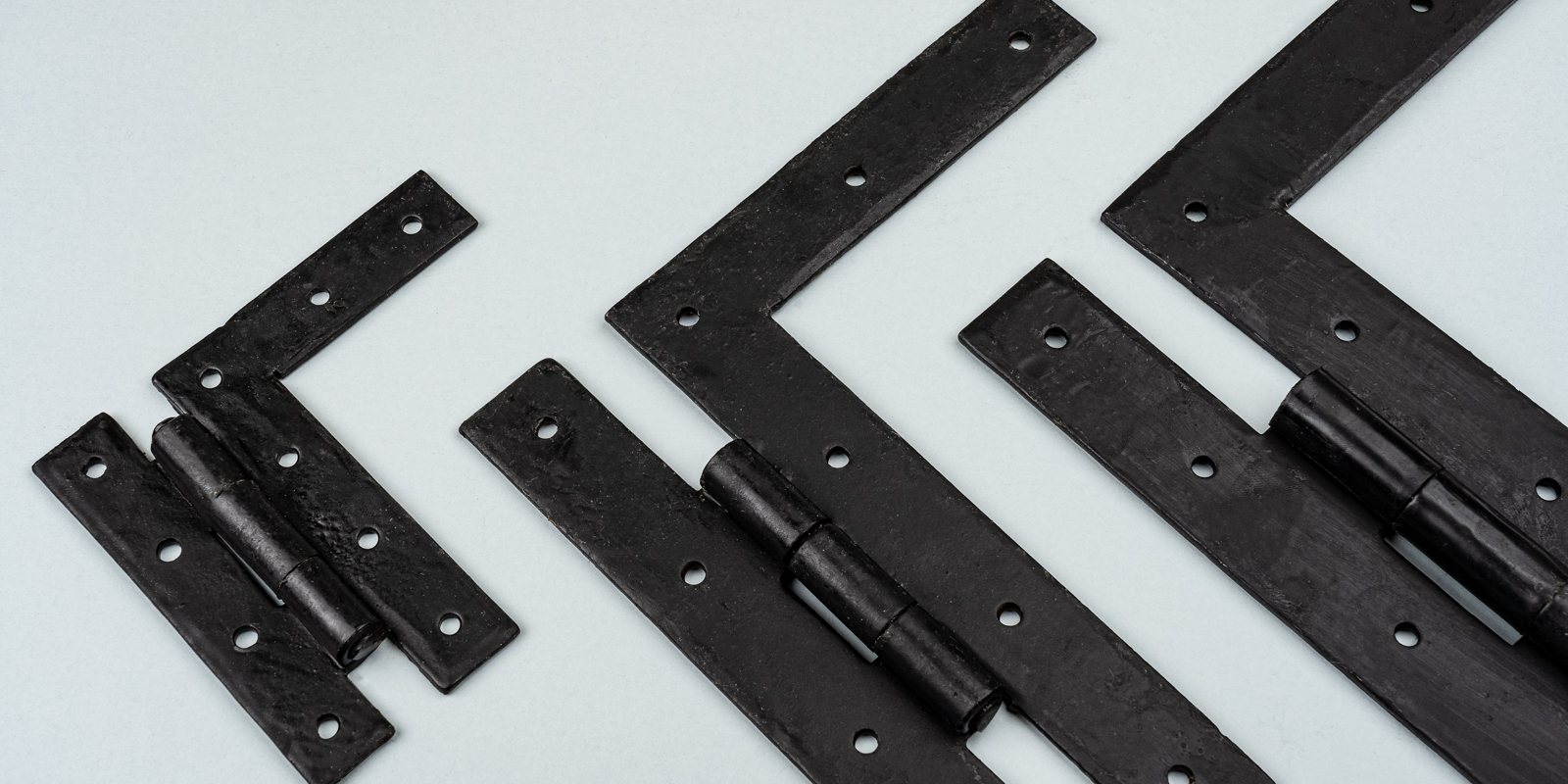

  • HL Hinges Black
    HL Hinge Black Beeswax 9 inches

    HL Hinges Black

    From £14.00

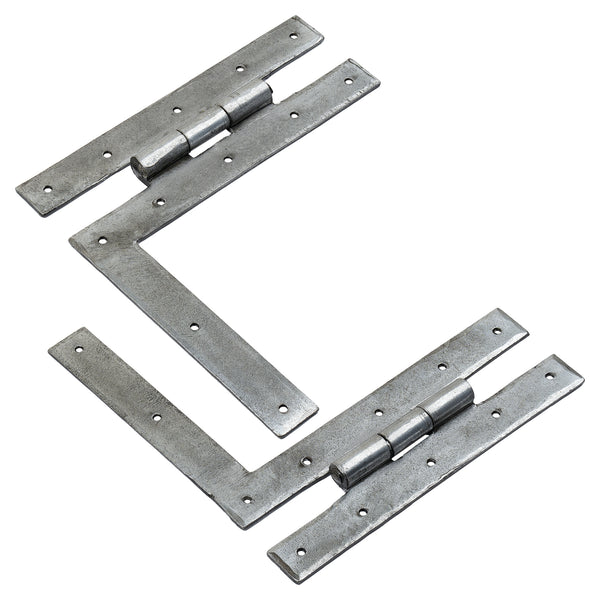

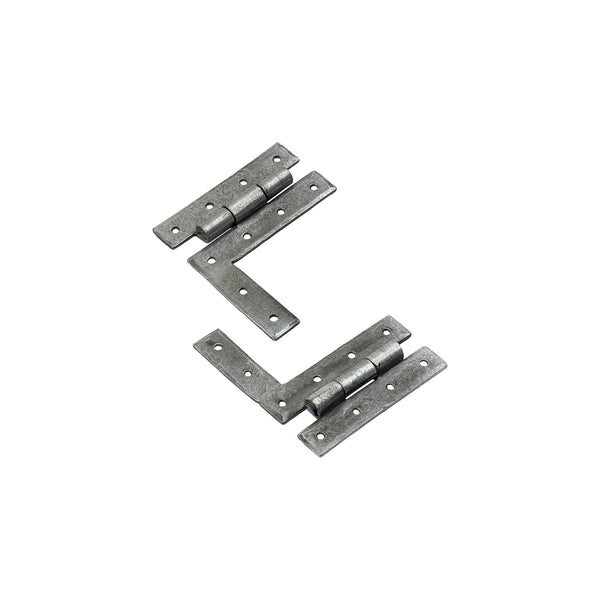

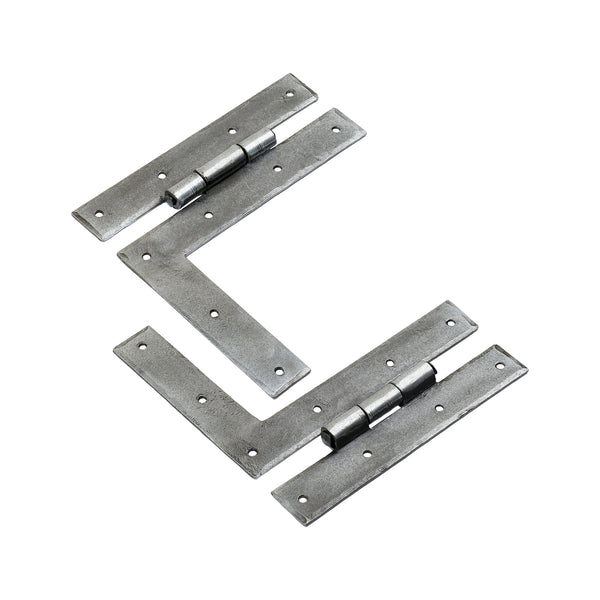

  • HL Hinges Pewter
    HL Hinges on kitchen cabinets

    HL Hinges Pewter

    From £18.00
  • Hand Forged Door Hinges
    h hinges for doors

    H Hinges Black

    From £12.00
  • H Hinges Pewter
    H Hinges 7 inches

    H Hinges Pewter

    From £15.00

Choosing H and HL hinges

H and HL hinges are surface-mounted fittings for internal timber doors, cupboards and traditional joinery. Their shape stays visible on the face of the door, making the hinge pattern, size and finish part of the finished appearance. This range is hand-forged from mild steel, with black beeswax and pewter options in both patterns.

H hinges have a compact, symmetrical outline, while HL hinges include an extended L-shaped arm. Choose between them by checking the available fixing space, door construction and dimensions, rather than appearance alone. Both patterns sit within our Traditional Hinges collection, where you can compare the wider range before selecting the fittings for your door or cupboard.

H hinges or HL hinges?

H hinges offer a straightforward outline for cupboard doors and suitable internal doors. Compare H hinges in black beeswax with H hinges in pewter to choose the finish that suits your joinery.

The extended arm gives HL hinges a different fixing footprint and visible shape. The arm is intended to run parallel to the top or bottom edge of the door. See HL hinges in black beeswax and HL hinges in pewter for the available sizes and product information.

Do not treat the HL shape alone as confirmation that a hinge will support a particular door or correct an existing sagging problem. Check the door, frame and fixing arrangement before choosing either pattern.

Choosing the size for your door or cupboard

H hinges are available in nominal 4 and 7 inch sizes. HL hinges are available in nominal 4, 7 and 9 inch sizes. The 4 inch options are listed for cupboards and smaller doors; the larger options are listed for suitable internal doors.

These size labels are a starting point, not a door-weight rating. Review the product drawing for the overall dimensions, fixing positions and space needed on the door and frame. When replacing existing hinges, compare the old fixing positions as well as the visible outline. A matching nominal length does not establish that the screw holes will line up.

Black beeswax or pewter?

Black beeswax gives the hinges a dark finish, while pewter offers a lighter, silver-grey appearance. Both finishes are applied to mild steel; the pewter hinges are not made from solid pewter.

All four product listings advise against external use. Choose these hinges for internal joinery rather than gates, exposed doors or outdoor shutters. Do not treat a covered porch as an exception to the product guidance.

Follow the finish-care advice supplied with the selected product. The black beeswax listings describe occasional maintenance; neither finish should be presented as maintenance-free.

Surface mounting, orientation and supplied fixings

These hinges are designed to lie flat on the face of the door and its surround. They are not fitted into the edge of a door like conventional recessed butt hinges. Check that the two fixing surfaces and the available clearances suit the chosen hinge before ordering.

Each listed size is sold as a pair with matching wood screws. Check the selected product information for hinge orientation, screw details and the fixing arrangement required by your joinery. For replacement work, check the condition of the existing timber and whether previous screw holes affect the new fixing positions.

Where door weight, hinge quantity or an unusual installation is uncertain, ask for product-specific advice before fitting. Do not assume that adding another hinge provides a verified load capacity.

Matching hinges with traditional hardware

For a traditional timber door, compare the hinges with Suffolk latches. For cupboard fronts and doors needing a separate pull, browse our hand-forged pull handles. Check each fitting's dimensions and intended use rather than choosing by finish alone.

For a different decorative hinge pattern on suitable cupboards and furniture, compare our Butterfly Hinges collection. The wider Traditional Door Hardware collection brings together coordinating hinges, latches, bolts and other fittings.

Further guidance

For an overview of the different fitting families and the checks to make when matching them, read the Traditional Hand-Forged Ironmongery Range Explainer. Use the individual product descriptions and drawings for the final size, finish and fitting details.
