Traditional Latch Accessories: Spare Parts, Privacy Conversions, and Installation Tips

Introduction

Traditional latch accessories are the staples, keepers, locking pins and replacement fittings that allow a Suffolk latch to operate correctly. Although these components are small, choosing the correct part is essential for smooth movement, reliable closure and a coordinated appearance.

Replacement accessories can be used to repair an existing latch, replace a damaged fitting or add simple privacy to a suitable internal door. Compatibility is important because penny-end, arrow-end and fine-handle latch components are not necessarily interchangeable.

Browse our complete collection of traditional hand-forged latch accessories.

Table of Contents

1. What Are Traditional Latch Accessories?
2. Parts of a Suffolk Latch
3. Knock-In Staples
4. Screw-On Staples
5. Latch Keepers
6. Locking Staples and Privacy Pins
7. Choosing Compatible Replacement Parts
8. Installation Guidance
9. Black Beeswax and Pewter Finishes
10. Can Latch Accessories Be Used Outdoors?
11. Bathrooms, Emergency Access and Building Regulations
12. Care and Maintenance
13. Frequently Asked Questions

What Are Traditional Latch Accessories?

Traditional latch accessories are the individual fittings that support, guide or retain the moving latch bar of a Suffolk thumb latch.

The principal accessories are:

• Staples: hold the latch bar against the face of the door while allowing it to move.
• Keepers: receive the end of the latch bar when the door closes.
• Locking staples: include a removable pin that prevents the latch bar from being raised.
• Replacement latch bars and thumb pieces: replace damaged or missing parts where a compatible component is available.

Accessories should be selected to match the design and finish of the existing latch. Browse the available Suffolk latch replacement parts.

Parts of a Suffolk Latch

A traditional Suffolk latch has a handle and thumb lever on one side of the door. A thumb bar passes through the door and raises a horizontal latch bar on the opposite side.

The latch bar is held close to the door by one or more staples. Its end rests in a keeper fitted to the door frame. When the thumb lever is pressed, the bar rises out of the keeper and releases the door.

The handle, latch bar, staples and keeper must work together. A replacement component with the wrong profile or dimensions may prevent the latch bar from moving freely or aligning with the keeper.

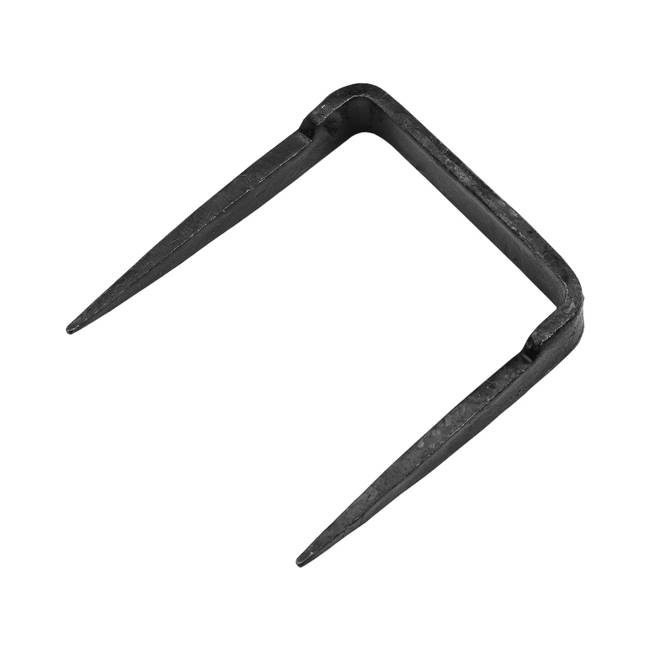

Knock-In Staples

A knock-in staple is a traditional forged fitting with pointed legs that are driven into or through the timber. It holds the latch bar against the door while leaving enough clearance for the bar to move.

This type of staple provides an authentic appearance but requires careful positioning. Once driven into the door, it is much more difficult to adjust than a screw-on version.

Before fitting a knock-in staple:

• Confirm that the door is made from suitable solid timber.
• Check that the pointed legs will not emerge in an unsafe or visible position.
• Mark the latch-bar position before making any holes.
• Use appropriately sized pilot holes where recommended.
• Test the movement of the latch bar before completing the installation.

If you are uncertain about driving or clinching a traditional fitting, ask a carpenter or joiner to install it.

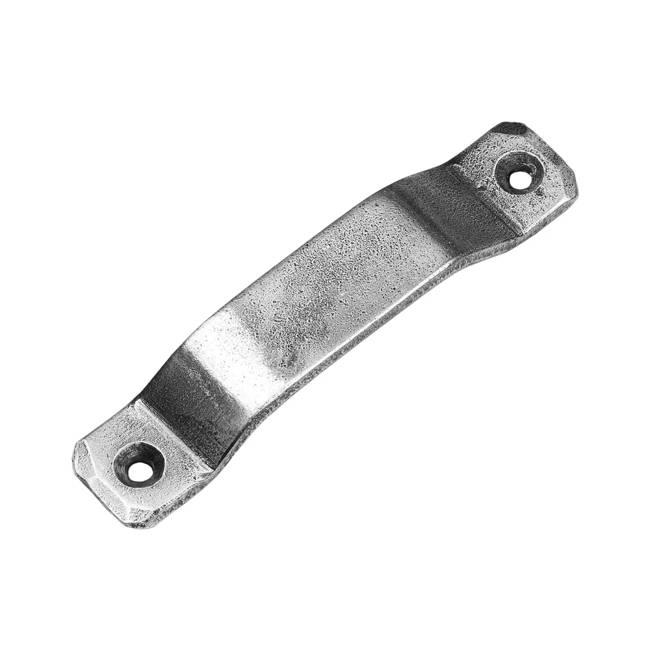

Screw-On Staples

A screw-on staple performs the same guiding function but is secured with screws. It is generally easier to position, test and replace than a knock-in staple.

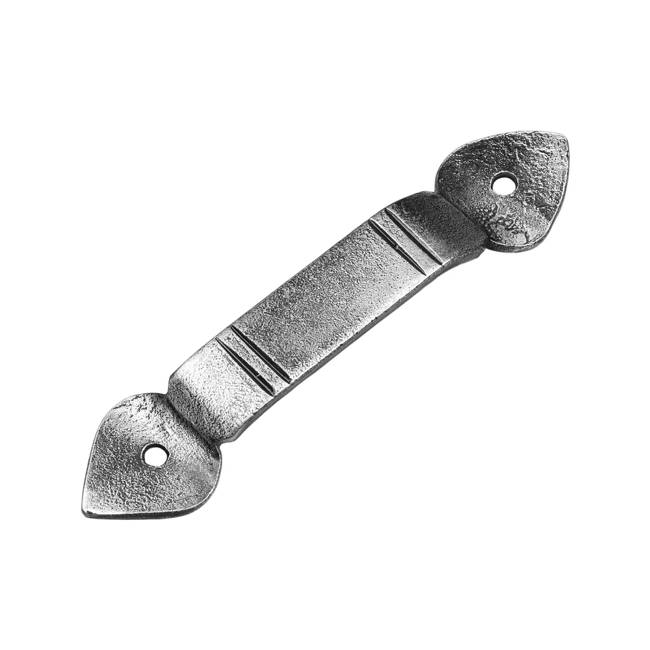

Screw-on versions are available in different decorative profiles, including penny-end, arrow-end and fine-handle designs. Select the profile that matches your latch rather than choosing solely by finish.

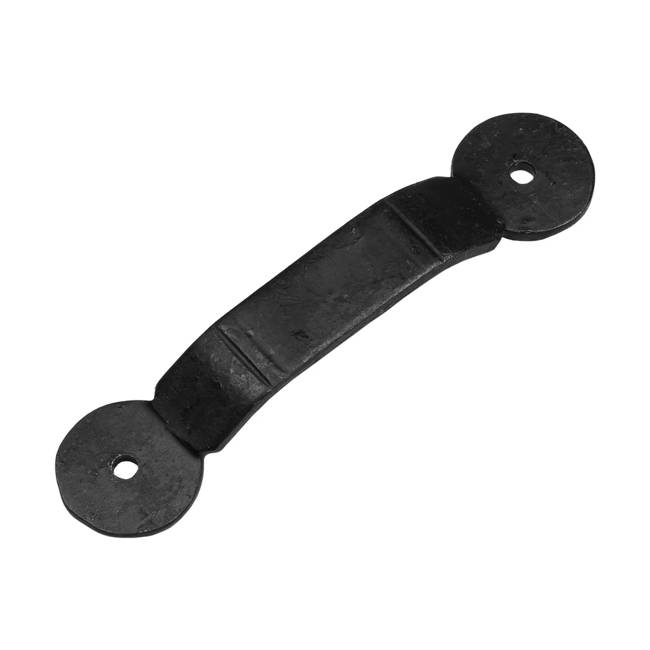

The penny-end screw-on staple is intended to coordinate with a traditional penny-end Suffolk latch.

When fitting:

• Hold the latch bar in its normal horizontal position.
• Place the staple over the bar without restricting its movement.
• Mark the screw positions accurately.
• Drill suitable pilot holes.
• Fit the screws loosely and test the latch before final tightening.

The latch bar should lift freely and fall back under its own weight without binding against the staple.

Latch Keepers

The keeper is fitted to the door frame and receives the end of the latch bar when the door closes. Its position determines whether the bar engages cleanly and holds the door shut.

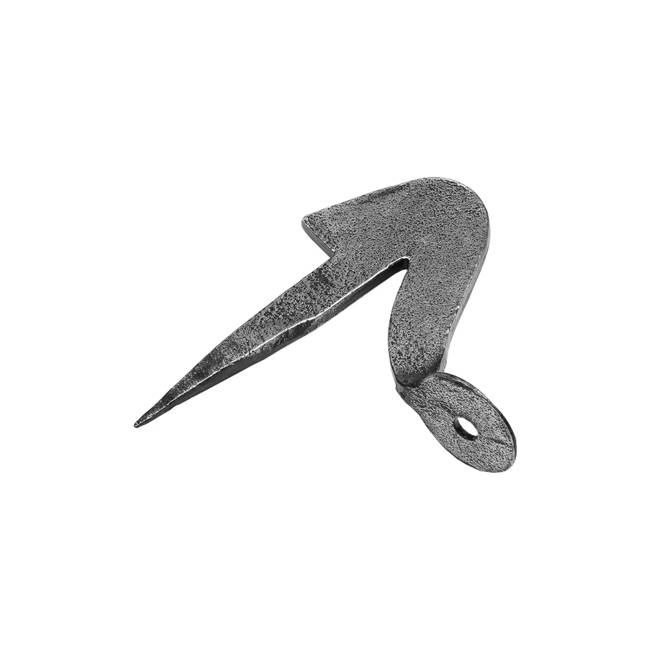

Standard Keeper

A standard keeper is a practical replacement for a traditional Suffolk latch. Depending on the design, it may have a spike, a screw fixing or a combination of both.

To establish the correct position, close the door and mark where the underside of the latch bar meets the frame. The keeper should allow the bar to ride over its curved edge and then fall securely into place.

View the current standard latch keeper.

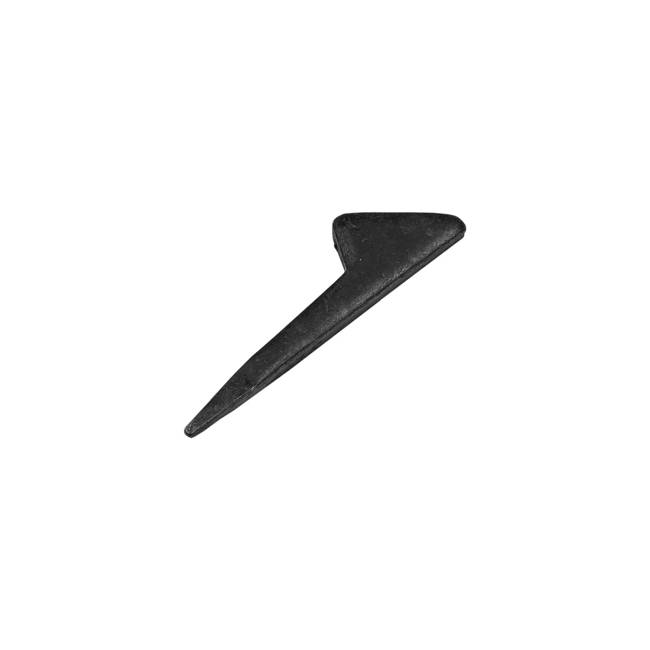

Fine Keeper

A fine keeper has a slimmer profile intended to coordinate with compatible fine-handle Suffolk latches. It should not automatically be treated as interchangeable with the standard keeper.

Check the keeper dimensions, fitting method and compatible latch before ordering. If replacing a missing part, photographs and measurements of the existing latch can help identify the correct component.

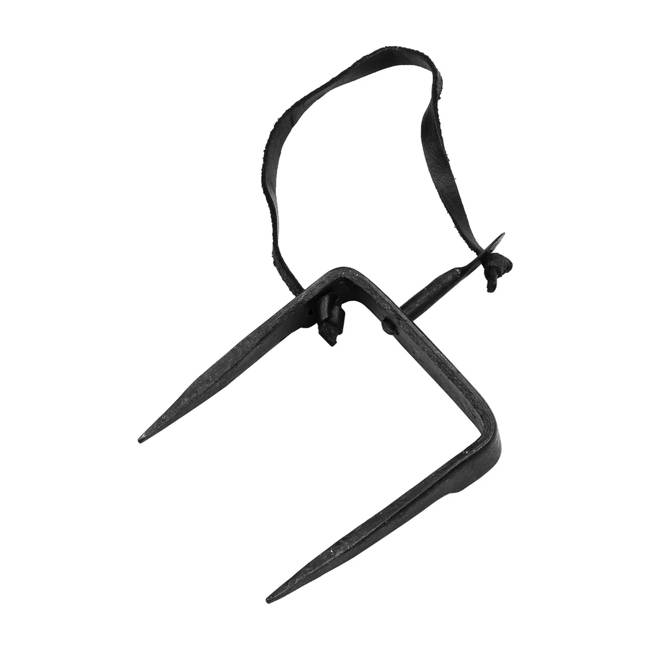

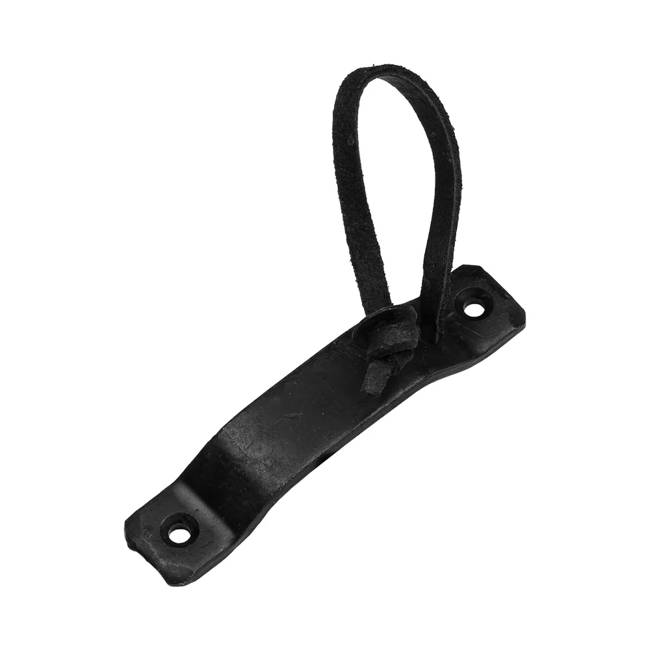

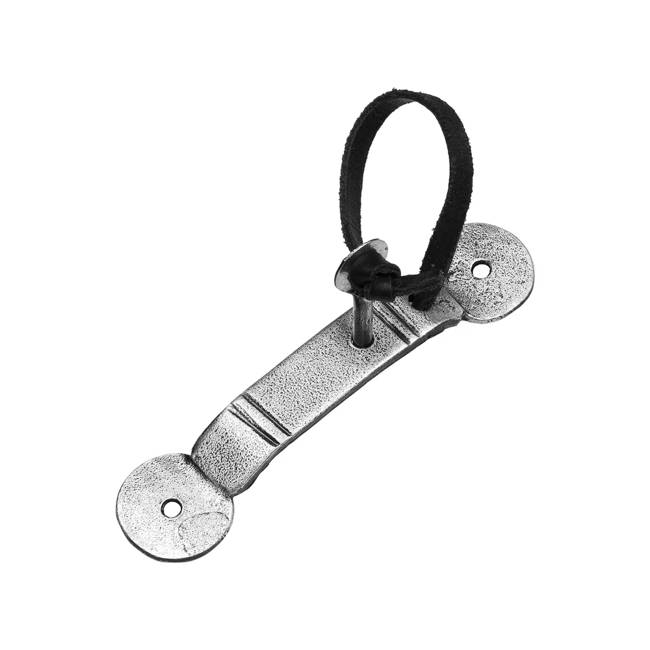

Locking Staples and Privacy Pins

A locking staple is fitted on the latch-bar side of a Suffolk latch. It includes an opening for a removable pin, usually attached with a leather lanyard.

When inserted, the pin prevents the latch bar from rising. This provides simple privacy for an internal bedroom, bathroom or cloakroom, but it should not be treated as a security lock.

Locking staples are available in different shapes and finishes. A penny-end locking staple should be paired with a compatible penny-end latch, while an arrow-end version coordinates with Gothic-style hardware.

Examples include:

• Penny-End Locking Staple in Black Beeswax
• Penny-End Locking Staple in Pewter

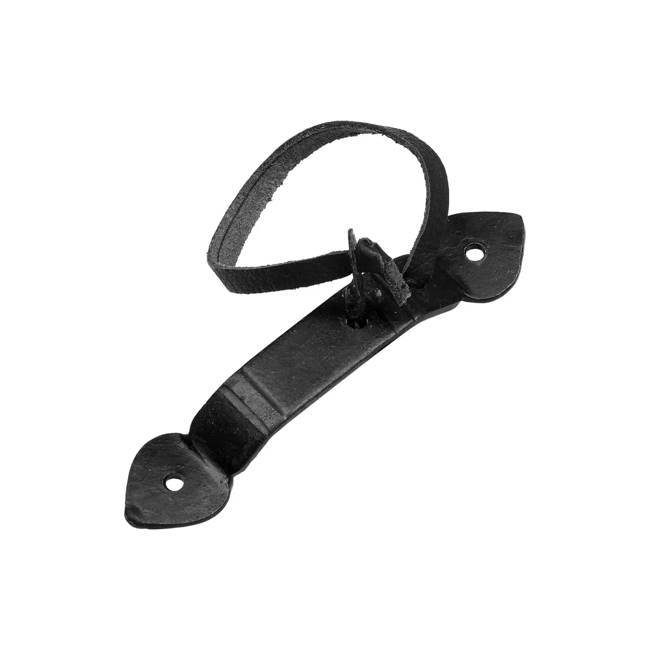

• Arrow-End Locking Staple in Black Beeswax

A locking staple can only be operated from the latch-bar side of the door. Check the door’s opening direction and room layout before selecting this type of privacy fitting.

Choosing Compatible Replacement Parts

Do not assume that every staple, keeper or latch bar will fit every traditional latch. Before ordering, identify:

• The exact latch design, such as penny-end, arrow-end or fine handle
• The finish, such as black beeswax or pewter
• The dimensions of the existing component
• The thickness and construction of the door
• Whether the original fitting is screwed, driven or clinched into place
• Whether privacy is required and from which side of the door

If the latch is not one of our current products, send clear photographs and measurements before ordering a replacement. Similar-looking hand-forged components can have different dimensions.

Compatibility Guide

Accessory	Purpose	Typical Compatibility	Location	Important Check
Knock-in staple	Guides and retains the latch bar	Compatible traditional Suffolk latches	Internal	Door thickness and spike position
Screw-on staple	Guides and retains the latch bar	Match penny, arrow or fine-handle profile	Internal	Latch-bar clearance
Standard keeper	Receives the latch bar	Compatible standard Suffolk latches	Internal	Alignment with latch bar
Fine keeper	Receives the latch bar	Compatible fine-handle latch	Internal	Keeper dimensions and fixing style
Locking staple and pin	Adds privacy by preventing the bar from rising	Match latch profile and finish	Internal	Can only operate from latch-bar side

Installation Guidance

The correct fitting method depends on the accessory and door construction. Always check the product information supplied with the replacement part.

Before Starting

• Confirm that the replacement part is compatible with the latch.
• Check for concealed services before drilling.
• Support the door so that it cannot move unexpectedly.
• Use a pencil to mark positions before creating permanent holes.
• Use the correct screwdriver for traditional slotted screws.
• Drill suitable pilot holes to reduce the risk of splitting timber.

Aligning a Staple

Position the latch bar horizontally and place the staple over it. The staple should retain the bar without gripping it tightly. The bar must be able to lift and fall freely.

If using a screw-on staple, fit the screws loosely and test the latch several times before fully tightening them.

Aligning a Keeper

Close the door and mark the underside of the latch bar against the frame. Position the keeper so that the bar travels over its leading edge and drops naturally into place.

Test the door gently before finalising the fixing. Do not force the latch bar against a badly aligned keeper because this may bend the bar, loosen the fittings or damage the timber.

Installing a Locking Staple

Fit the locking staple in the same general position as a standard screw-on staple, ensuring that the latch bar can move normally when the pin is removed.

Follow the product’s instructions before drilling the latch bar or door. The pin must align correctly and should be easy to insert and remove without forcing it.

Black Beeswax and Pewter Finishes

Black Beeswax

Black beeswax gives hand-forged mild steel a traditional dark appearance. The wax offers limited protection in dry interior conditions but is not a weatherproof coating.

A new fitting may feel slightly tacky. Excess wax can be removed carefully with a mild solvent, such as WD-40, and a soft cloth. Apply a light coat of beeswax occasionally to help maintain the finish.

Pewter

Pewter-finish accessories are generally made from mild steel with a silver-grey decorative patina. The lighter finish highlights the forged texture and works particularly well with painted doors and pale timber.

A pewter appearance does not automatically make a product suitable for outside use. Unless its individual description confirms otherwise, treat it as an internal fitting.

When replacing one component, matching the existing finish will usually provide the most consistent appearance. Because hand-finished products naturally vary, a new accessory may not be identical in tone to an older latch that has aged through use.

Can Latch Accessories Be Used Outdoors?

The standard black beeswax and pewter accessories in this collection are intended for internal use unless the individual product page expressly states otherwise.

Beeswax provides only limited moisture protection, while standard pewter patina is not a dedicated exterior-grade coating. Exposure to rain or persistent damp may result in corrosion.

For an exterior gate, garden door or outbuilding, select a complete latch system specifically described as suitable for outdoor installation. The Thumb Latch with Armor-Coat is listed for both internal and external use.

Do not combine standard internal replacement components with an exterior latch unless the manufacturer confirms compatibility and outdoor suitability.

Bathrooms, Emergency Access and Building Regulations

A locking staple can provide simple privacy, but it does not normally provide an emergency-release control on the opposite side of the door.

This does not mean that locking staples are universally prohibited in every domestic bathroom. Requirements depend on the building, type of sanitary accommodation, location and scope of the work.

Approved Document M includes specific emergency-release guidance for WC compartments and wheelchair-accessible unisex toilets, changing rooms and shower rooms in buildings other than dwellings. Other projects may be subject to different accessibility, safety or client requirements.

For a new build, extension, commercial building, accessible bathroom or regulated renovation, confirm the required privacy fitting with your architect, designer or building-control body before installation. See the official Approved Document M guidance.

Even where a traditional locking staple is permissible, consider whether somebody might need emergency assistance. A turn-and-release fitting with an external emergency release may be the safer option for:

• Family bathrooms used by young children
• Rooms used by elderly or vulnerable occupants
• Accessible bathrooms
• Guest accommodation
• Commercial or publicly accessible toilets

A locking staple provides privacy only. It should not be represented as an approved security fitting or a universal substitute for a purpose-designed bathroom lock.

Care and Maintenance

Regular inspection helps keep traditional latch accessories working correctly:

• Check that the latch bar rises and falls without binding.
• Remove accumulated dirt, paint or wax from moving contact points.
• Tighten loose screws carefully with the correct screwdriver.
• Check that the keeper remains aligned with the latch bar.
• Use a small amount of light oil on moving contact points if required.
• Reapply a thin layer of beeswax periodically to black beeswax fittings.
• Do not use abrasive cleaners that may remove the decorative finish.

Timber doors can move with seasonal changes in temperature and humidity. If a previously smooth latch begins to catch, check the alignment of the keeper before replacing the mechanism.

Frequently Asked Questions

Can I replace one part of a Suffolk latch?

Yes, provided a compatible replacement is available. Match the latch design, dimensions, fixing method and finish before ordering.

What is the difference between a staple and a keeper?

A staple holds the latch bar against the face of the door while allowing it to move. A keeper is fitted to the door frame and receives the end of the bar when the door closes.

Can I replace a knock-in staple with a screw-on staple?

Usually, provided the new staple is compatible with the latch bar and there is suitable timber for the screw fixings. Existing holes or damage from the original staple may need careful repair.

Can I add privacy to an existing Suffolk latch?

A compatible locking staple can prevent the latch bar from rising. Alternatively, a separate internal bolt or turn-and-release fitting can be installed.

Which side of the door does a locking staple fit?

It fits on the latch-bar side of the door. The pin cannot normally be operated from the thumb-handle side.

Is a locking staple a security lock?

No. A locking staple provides basic internal privacy and should not be relied upon for entrance-door security.

Can a locking staple be used on a bathroom door?

It may be suitable for some existing domestic internal doors, but it has no external emergency release. Consider the occupants, room layout and any applicable building or accessibility requirements before choosing it.

Can standard latch accessories be used outside?

Standard black beeswax and pewter accessories should be treated as internal products unless their individual descriptions specifically confirm exterior suitability.

Can I mix black beeswax and pewter accessories?

The mechanism may work if the parts are otherwise compatible, but matching finishes normally creates a more consistent appearance. Compatibility should be checked independently of colour.

Conclusion

Staples, keepers and privacy pins may be small components, but each one affects how smoothly and reliably a traditional Suffolk latch operates.

When replacing a part, identify the latch style, dimensions, finish and fixing method before ordering. A compatible replacement will preserve the function and appearance of the door without requiring the complete latch to be changed.
