Introduction

A tubular latch is fitted into the edge of an internal door and holds the door closed without locking it. Turning a door handle or knob rotates the spindle, retracts the latch bolt and allows the door to open.

Choosing the right tubular latch means checking more than the nominal inch size. The case length, backset, spring strength and fixing layout must suit both the door and the hardware. This guide explains those checks and helps you narrow down the correct specification before ordering.

What to Check Before Choosing a Tubular Latch

If you are replacing an existing latch, begin with the door rather than the product name. Record the case length, backset, forend size and the position of the spindle. Also check the shape and size of the existing recess. A close match can reduce the amount of alteration needed, although the new latch must still be suitable for the handle or knob.

For a new door, decide where the handle or knob needs to sit. Check that the latch case will fit within the door stile without weakening its edge, and allow enough clearance between the user’s hand and the door frame. Door thickness matters when selecting compatible spindles and fixings, but it does not determine the backset by itself.

Tubular Latch Sizes, Case Length and Backset

Tubular latch sizes are commonly described in inches, but the inch size is only a nominal description. The two measurements to understand are:

• Case length: the overall depth of the latch case fitted into the edge of the door.
• Backset: the distance from the door edge or stated faceplate reference to the centre of the square spindle opening.

These measurements are related, but they are not interchangeable. A 3-inch tubular latch commonly has a backset of approximately 55 mm. However, dimensions can vary slightly between manufacturers and product ranges. Always use the drawing supplied for the exact latch you intend to fit.

For a fuller explanation of the measuring points, see our guide to door handle backset and how to measure it.

Standard, Heavy-Duty and Double-Sprung Latches

A sprung handle or knob contains its own return spring. This helps bring the furniture and spindle back to their resting position, so a compatible standard tubular latch may be sufficient.

Unsprung hardware relies more heavily on the latch mechanism for its return action. A compatible heavy-duty, double-sprung latch is usually the appropriate starting point, but “double sprung” should not be treated as a universal guarantee. Check the requirements of the exact handle or knob, particularly where the hardware is large or heavy.

Heavy-duty generally describes construction and intended use, while double-sprung describes additional return assistance. Some products have both characteristics, but check the technical information.

You can compare the available tubular latches and deadbolts, including standard and heavy-duty options, after recording the measurements and hardware requirements.

Bolt-Through Fixings and Compatibility

Bolt-through door furniture uses fixing bolts that pass through the door and connect the two sides of the handle or knob. The latch case needs suitably positioned openings so these bolts can pass without striking the mechanism.

The presence of bolt-through openings does not mean every latch will suit every handle. Compare the centres and clearances shown on both product drawings. If the fixing pattern is uncertain, check the exact combination before drilling the door.

Most of the latch sits inside the door, but the visible forend and keep should suit the surrounding door furniture.

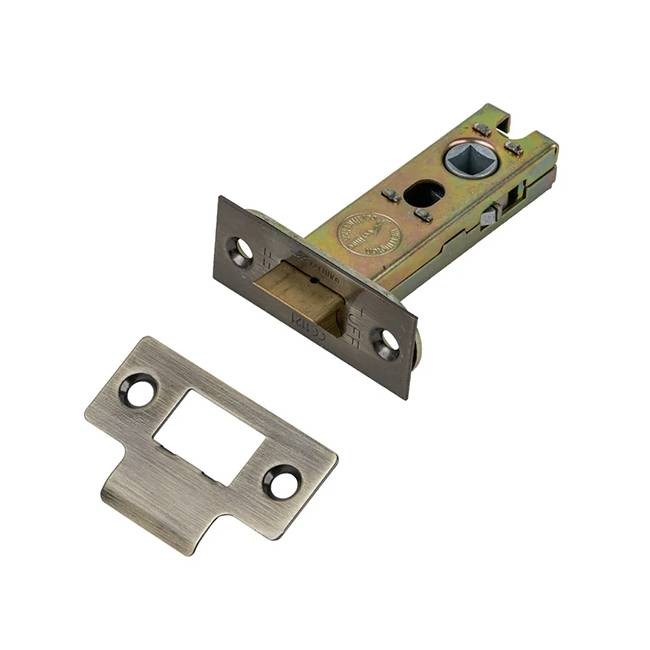

Antique brass heavy duty 3 inch tubular latch

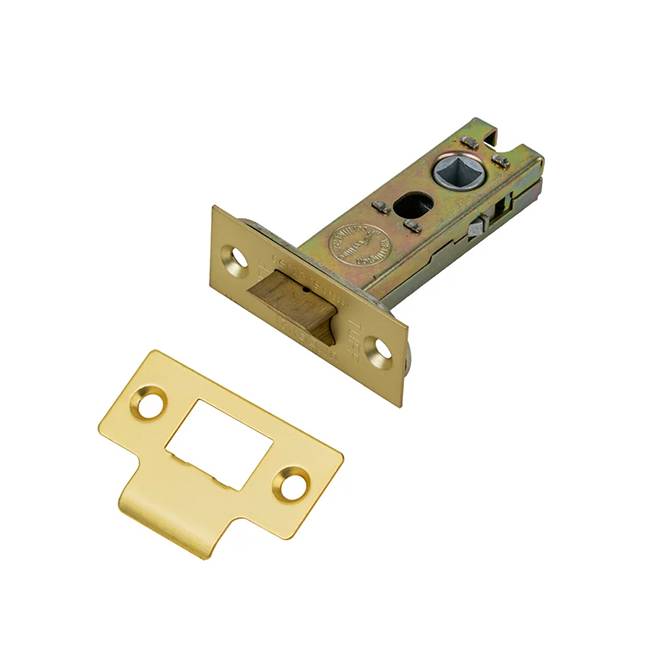

Satin brass heavy duty 3 inch tubular latch

Door Handles and Door Knobs

Door handles are often positioned closer to the door edge than knobs, but the correct latch still depends on the door and the chosen handle. Check whether the handle is sprung or unsprung and whether it uses bolt-through fixings. Our door handles collection remains the main place to choose the handle itself.

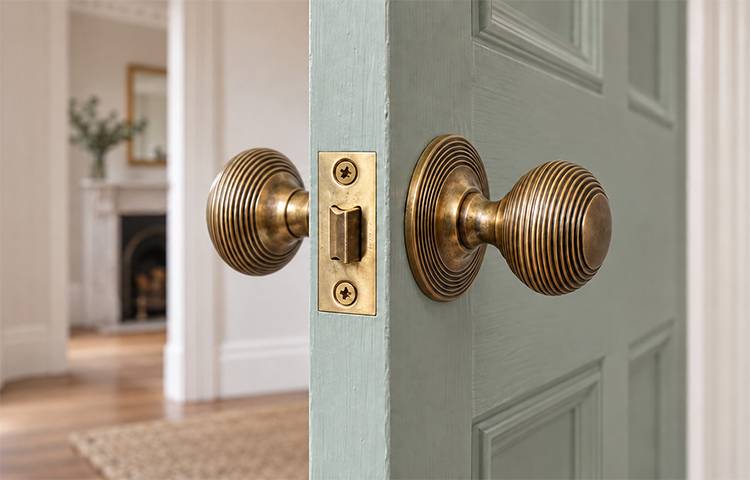

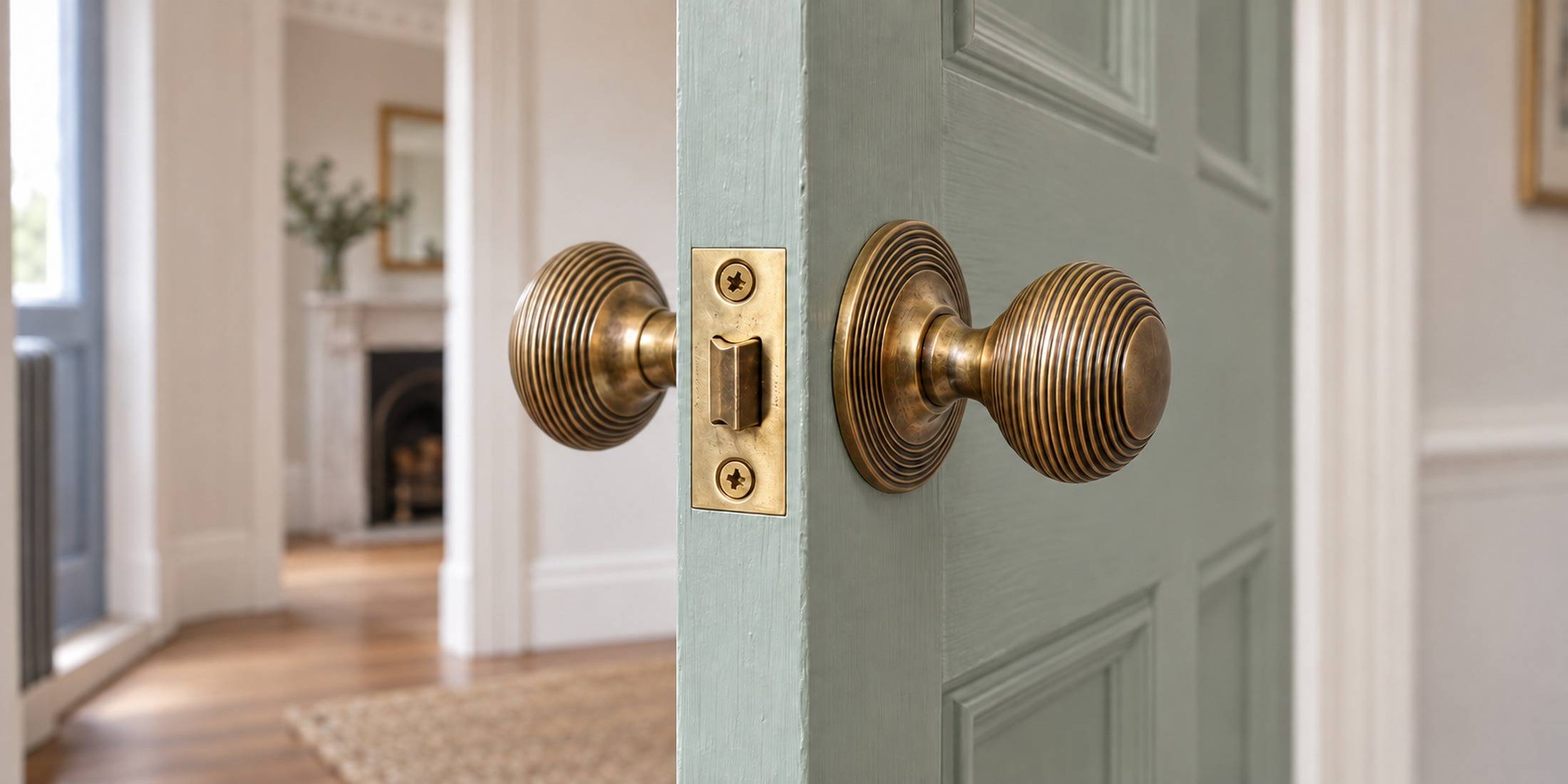

A door knob often benefits from a deeper latch because this positions the knob further from the frame and provides more room for the hand. This is a practical clearance check rather than a fixed rule. The knob diameter, the door stop and the available stile depth all affect the decision. Springing must also be checked: a sprung knob may suit a compatible standard latch, while an unsprung knob normally needs suitable additional return assistance.

Do You Need a Latch or a Lock?

A tubular latch holds a door closed but does not lock it. If the room needs privacy, a separate bathroom turn and release, privacy bolt or suitable bathroom lock may be required. If security is needed, select a lock designed and certified for the intended door rather than relying on a tubular latch.

Our guide to choosing between a lock and a latch explains these functions in more detail. For a fire door, the hardware must be suitable for the complete tested or certified door assembly and fitted in accordance with its supporting information. The British Woodworking Federation’s fire-door hardware guidance provides further background.

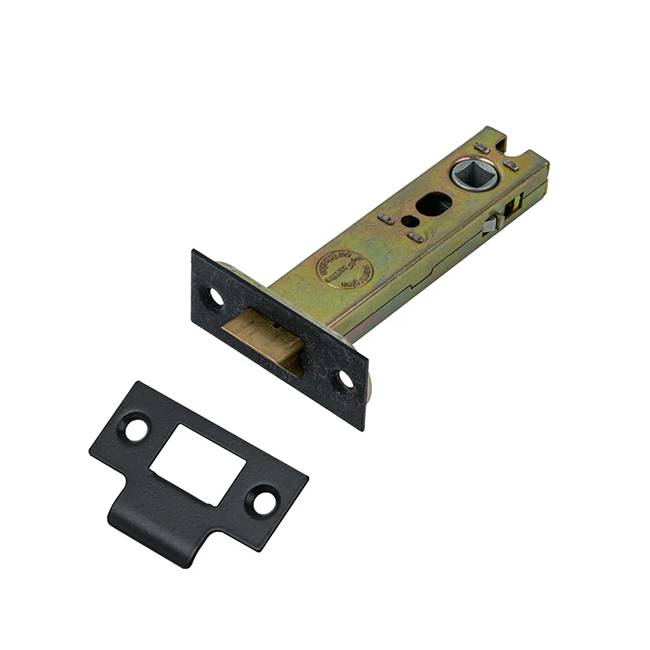

Matt black 4 inch heavy duty tubular latch

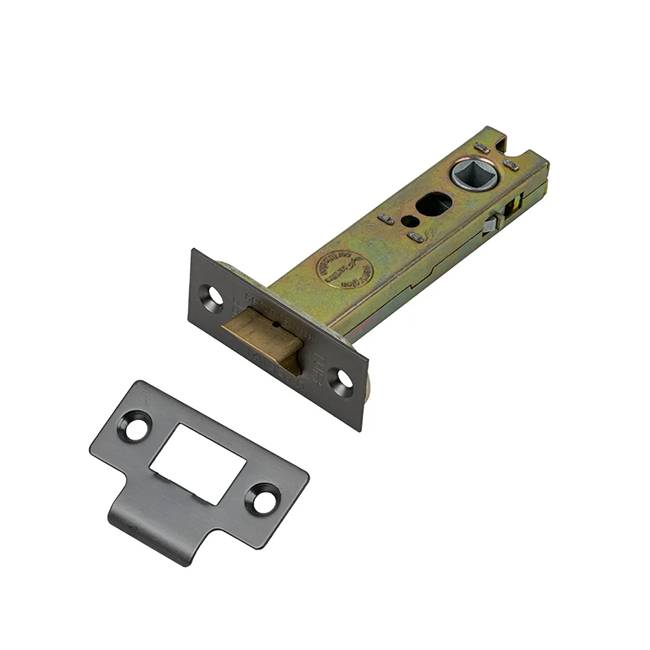

Matt gun metal 4 inch heavy duty tubular latch

Tubular Latch Selection Checklist

Before ordering, record the following:

• Whether the door needs to latch only, provide privacy or provide security.
• The available depth within the door stile.
• The required handle or knob position and hand clearance.
• The case length and backset shown on the exact product drawing.
• Whether the handle or knob is sprung or unsprung.
• Whether bolt-through fixing holes are required and correctly positioned.
• The forend dimensions and finish.
• Any fire-door or manufacturer-specific requirements.

Once the latch has been selected, follow the product instructions and our separate guide explaining how to fit a tubular latch. This article concentrates on selection rather than drilling and installation.

Conclusion

The right tubular latch is the one that suits the door, the required handle position and the return action of the chosen hardware. Treat the nominal inch size as a useful starting point, then confirm the actual case length, backset and fixing layout against the exact product drawing. This avoids relying on measurements that may vary between suppliers or models.

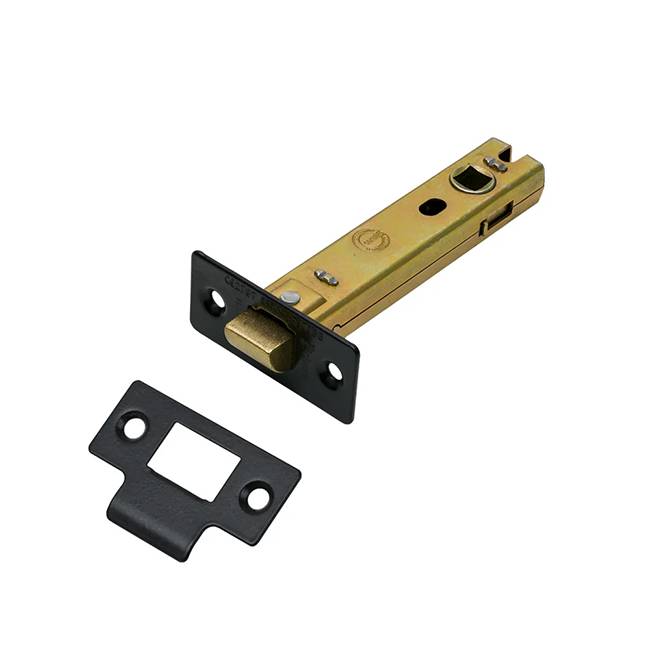

Standard matt black 4 inch tubular latch

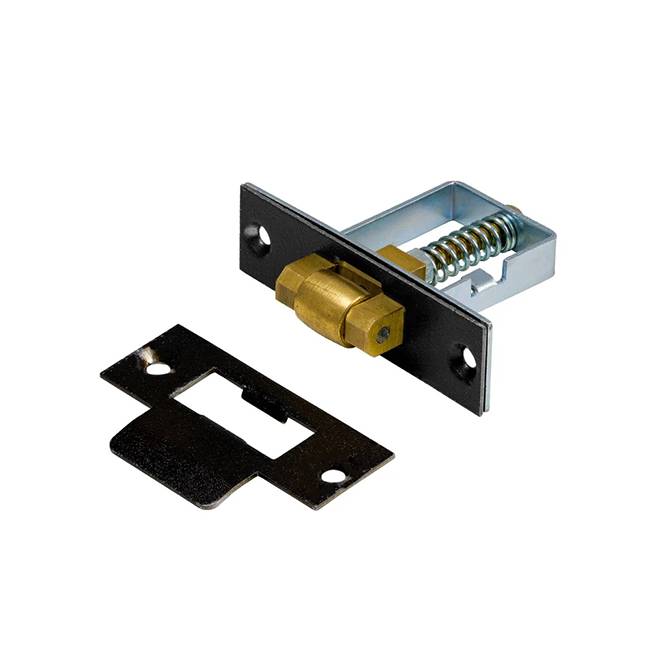

Adjustable Roller Catch Matt Black - £8.50

Frequently Asked Questions

What size tubular latch should I use?

Choose a latch by checking the available stile depth, desired handle or knob position, hand clearance, springing and fixing layout. Do not select it from the nominal inch size alone; confirm the actual case length and backset on the exact product drawing.

Does every 3-inch tubular latch have a 55 mm backset?

No. A 3-inch tubular latch commonly has a backset of approximately 55 mm, but the precise measurement and its reference point can vary between manufacturers and models. Check the drawing for the latch being ordered.

Can I use a standard tubular latch with a door knob?

A compatible standard latch may be used with a sprung door knob because the knob has its own return spring. An unsprung knob normally requires a suitable heavy-duty, double-sprung latch. Always confirm the requirements of the exact knob and latch.

Will a bolt-through tubular latch fit every door handle?

No. Bolt-through openings must align with the fixing centres of the selected handle or knob and provide clearance around the latch mechanism. Compare both product drawings before drilling.

Can a tubular latch lock a bathroom door?

No. A tubular latch holds the door closed but does not lock it. Bathroom privacy requires a compatible turn and release, privacy bolt or suitable bathroom lock.
