Are Rim Locks Reversible?

Introduction

Some rim locks are reversible and can be configured for doors opening in either direction. Others are individually handed and must be ordered as a left- or right-handed lock.

The answer therefore depends on the particular lock. A reversible latch does not necessarily mean that every part of the lock can be repositioned, and a handed lock should not be dismantled or altered unless its instructions specifically allow it.

This guide explains reversible latches, handed rim locks and the checks to make before ordering.

Table of Contents

1. What Does Reversible Mean?
2. Can You Reverse the Latch?
3. What Is a Handed Rim Lock?
4. How to Check Your Door Before Ordering
5. Inward- and Outward-Opening Doors
6. Reversible and Handed Locks in Our Range
7. Common Ordering Mistakes
8. What If You Already Have the Wrong Lock?
9. FAQ

What Does Reversible Mean?

A reversible rim lock is designed so that its latch can be configured to engage correctly when the lock is fitted to either orientation of door.

Depending on the product, reversing it may involve rotating the latch bolt or following another manufacturer-approved adjustment. The precise method varies between locks.

“Reversible” normally refers to the latch orientation. It does not automatically mean that every component—including the snib, keyhole, spring mechanism or decorative detail—can be moved.

Can You Reverse the Latch?

You can reverse the latch only when the particular lock is designed for this purpose. Check the product description and fitting instructions before attempting any adjustment.

Some locks allow the latch bolt to be removed or rotated without opening the main case. Others require a specific manufacturer-approved process.

Do not open or dismantle the lock case unless the instructions explicitly tell you to do so. Rim lock cases can contain preloaded springs and small components that are easily displaced. Unauthorised dismantling may also damage the finish or affect the product warranty.

If the lock is not described as reversible, assume it is handed until the manufacturer or supplier confirms otherwise.

What Is a Handed Rim Lock?

A handed rim lock is manufactured for one particular door orientation. Separate left- and right-handed versions may therefore be available.

Handing may affect:

• The direction of the angled latch bolt
• The position of the lock case on the door
• The location of the keeper on the frame
• The position of a bathroom snib or other control
• The orientation of decorative castings

There is no completely universal left- and right-hand naming convention across every hardware manufacturer. Always follow the handing diagram supplied for the exact product rather than relying on a general rule found elsewhere.

How to Check Your Door Before Ordering

First decide which face of the door will carry the visible lock case. Rim locks are normally fitted on the room or private side of an internal door.

Stand on the side where the lock case will be fitted and record:

1. Whether the door opens towards or away from you
2. Whether the hinges are on your left or right
3. Which edge of the door meets the frame
4. Where the keeper will need to be fitted
5. Whether the door frame provides a flat surface for the keeper
6. Whether any panels, mouldings or existing holes affect the lock position

Take a clear photograph from the intended lock-case side of the closed door. If the handing information remains unclear, send the photograph to the supplier before ordering.

Inward- and Outward-Opening Doors

A standard rim lock and keeper are normally arranged so that the lock case is fitted to the face from which the door opens towards the user.

If the door opens in the opposite direction from the intended lock-case side, the standard keeper may not align correctly with the latch. A different keeper or a lock designed for that arrangement may be required.

Do not assume that reversing the latch will solve a keeper or frame-alignment problem. Reversing the latch changes its direction, but it does not change the shape or fitting position of the keeper.

If the lock case would need to be installed on an exposed or public-facing side of the door, reconsider whether a rim lock is the correct solution.

Reversible and Handed Locks in Our Range

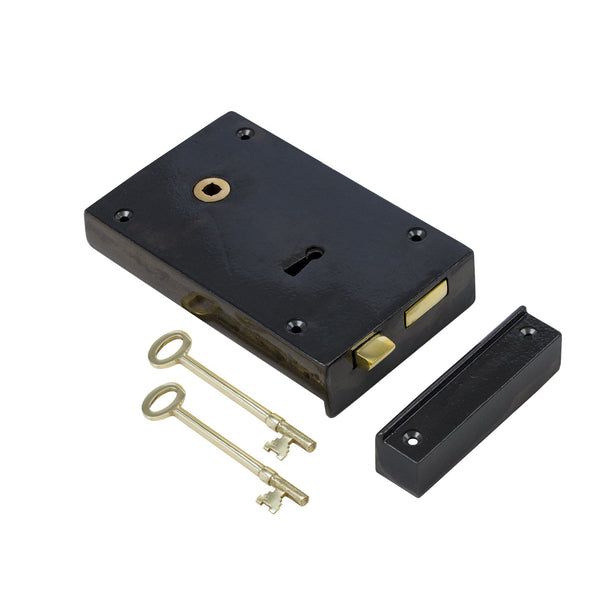

Our rim lock collection includes both reversible and handed designs. For example, selected classic rim locks are reversible, while selected traditional cast iron locks are sold in separate handing options.

Availability and specifications vary between individual products, so check the current listing before ordering.

Browse:

• Complete rim lock collection
• Classic rim locks
• Cast iron rim locks

You may also find our guide What Is a Rim Lock? helpful when choosing between keyed, bathroom and deadbolt designs.

Common Ordering Mistakes

Assuming Every Lock Is Reversible

A similar-looking latch does not guarantee that the lock can be reversed. Check the specification for the exact product.

Using a Generic Handing Rule

Left- and right-hand descriptions can change according to the side from which the door is viewed. Use the product’s own diagram.

Forgetting the Keeper

The door frame must provide enough room for the supplied keeper. Decorative architraves, rebates and stops can prevent correct alignment.

Choosing Incompatible Door Knobs

Rim locks normally require a dedicated rim lock knob set. One knob commonly fits against the lock case while the opposite knob uses a rose plate.

Ignoring the Door’s Opening Direction

The latch, keeper, door swing and chosen lock-case side must all work together. Checking only the hinge position is not enough.

What If You Already Have the Wrong Lock?

Do not drill the door or alter the lock until you have confirmed whether it can be reversed.

Check the product instructions or contact the supplier with:

• The product name or code
• A photograph of the lock
• A photograph of the door from the intended fitting side
• The hinge position
• The direction in which the door opens

If the lock is handed and has been ordered incorrectly, it may need to be exchanged for the opposite version. Avoid marking, fitting or dismantling it while you establish the correct option.

For positioning advice, read Where to Fit a Rim Lock.

FAQ

Are all rim locks reversible?

No. Some rim locks have a reversible latch, while others are manufactured as separate left- and right-handed versions.

Can I turn the latch around myself?

Only if the product instructions confirm that the latch is reversible and explain the approved method. Do not dismantle the lock case without guidance.

How do I know whether I need a left- or right-handed rim lock?

Identify the face where the lock case will be fitted, the hinge position and the direction in which the door opens. Then compare these details with the handing diagram for the exact product.

Does a reversible latch make the whole lock universal?

Not necessarily. Other components, such as a snib, key mechanism, decorative casting or keeper, may still restrict the fitting orientation.

Can a standard rim lock be fitted to an outward-opening door?

It depends on the intended lock-case side, door frame and keeper design. A standard keeper may not work in that arrangement, so confirm compatibility before ordering.

Are bathroom rim locks reversible?

Some are reversible and others are handed. The privacy control and emergency-release arrangement must also suit the chosen orientation.
