A Practical Guide to Replacing Window Hardware

Replacing window hardware can restore a sound timber window without replacing the complete window. First identify whether the fault is in the visible fitting, an internal mechanism or the window itself.

This guide covers traditional stays, surface-mounted fasteners, Espag handles and sash fittings on timber windows. It does not cover glazing, concealed hinges, internal gearbox repairs or structural joinery.

To identify the main product types, browse our Window Handles & Hardware Collection.

Table of Contents

Can Window Hardware Be Replaced?

Many surface-mounted fittings can be replaced when the timber is sound and the new product is compatible. An Espag handle can also be changed if its gearbox and locking mechanism still work correctly.

Replacement is more involved when the casement is warped, a sash does not close evenly, the timber is rotten or split, or an internal mechanism has failed. New hardware will not correct an unresolved window fault.

Peardrop Espagnolette in Polished Brass

Slim Monkeytail Espagnolette in Polished Brass

Identify the Window and Hardware Type

Start with the way the window opens and the job performed by the existing fitting.

Do not replace one type with another because the visible design looks similar. A traditional fastener and an Espag handle operate different systems.

Check Whether the Hardware Is the Real Problem

Operate the window before removing anything. A loose or broken fitting may be the fault, but poor alignment can also be caused by the window.

• If a stay is loose, inspect the screws and timber beneath its plates.
• If a fastener misses its keeper, check whether the casement closes squarely.
• If an Espag handle turns but the locking points do not move, the mechanism may be faulty.
• If a sash fastener will not align, check that the meeting rails close evenly.

Do not force a stiff fitting. Excess pressure can damage the hardware or mechanism.

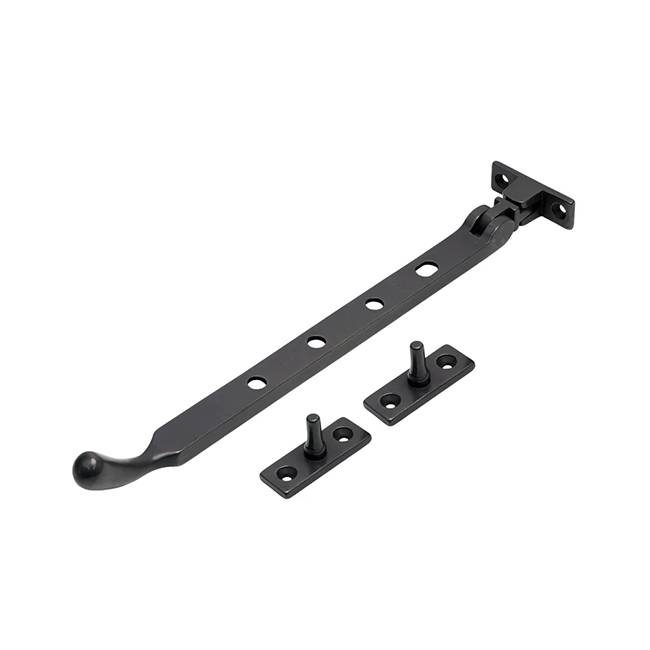

Bronze Pear drop Casement Stay Rustic Bronze

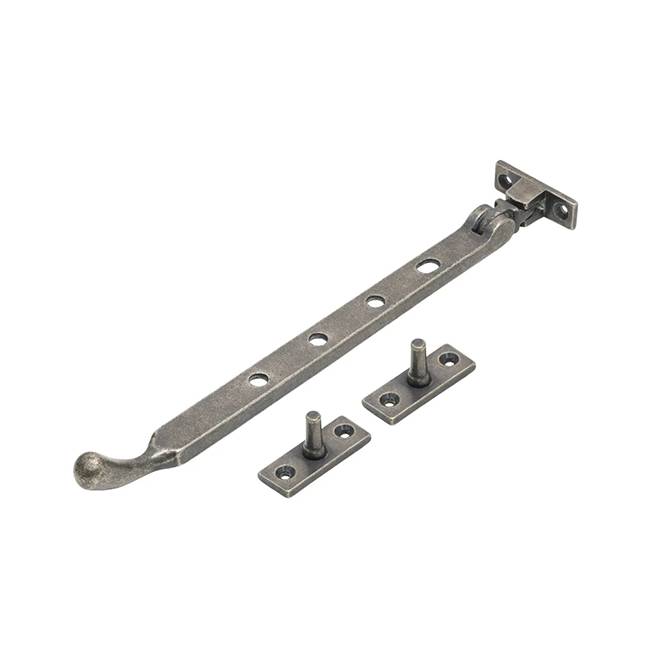

Bronze Pear drop Casement Stay White Bronze

Photograph and Measure Before Removal

Photograph the fitting in its open and closed positions, and keep it until the replacement has been tested.

Record:

• Overall size and fixing centres
• Fixing plate or backplate dimensions
• Keeper type, size and position
• Handing where relevant
• Spindle width and projection on an Espag handle
• Existing finish and nearby hardware

Check the product drawing as well as the headline dimensions. Similar fittings can have different hole positions or plate footprints.

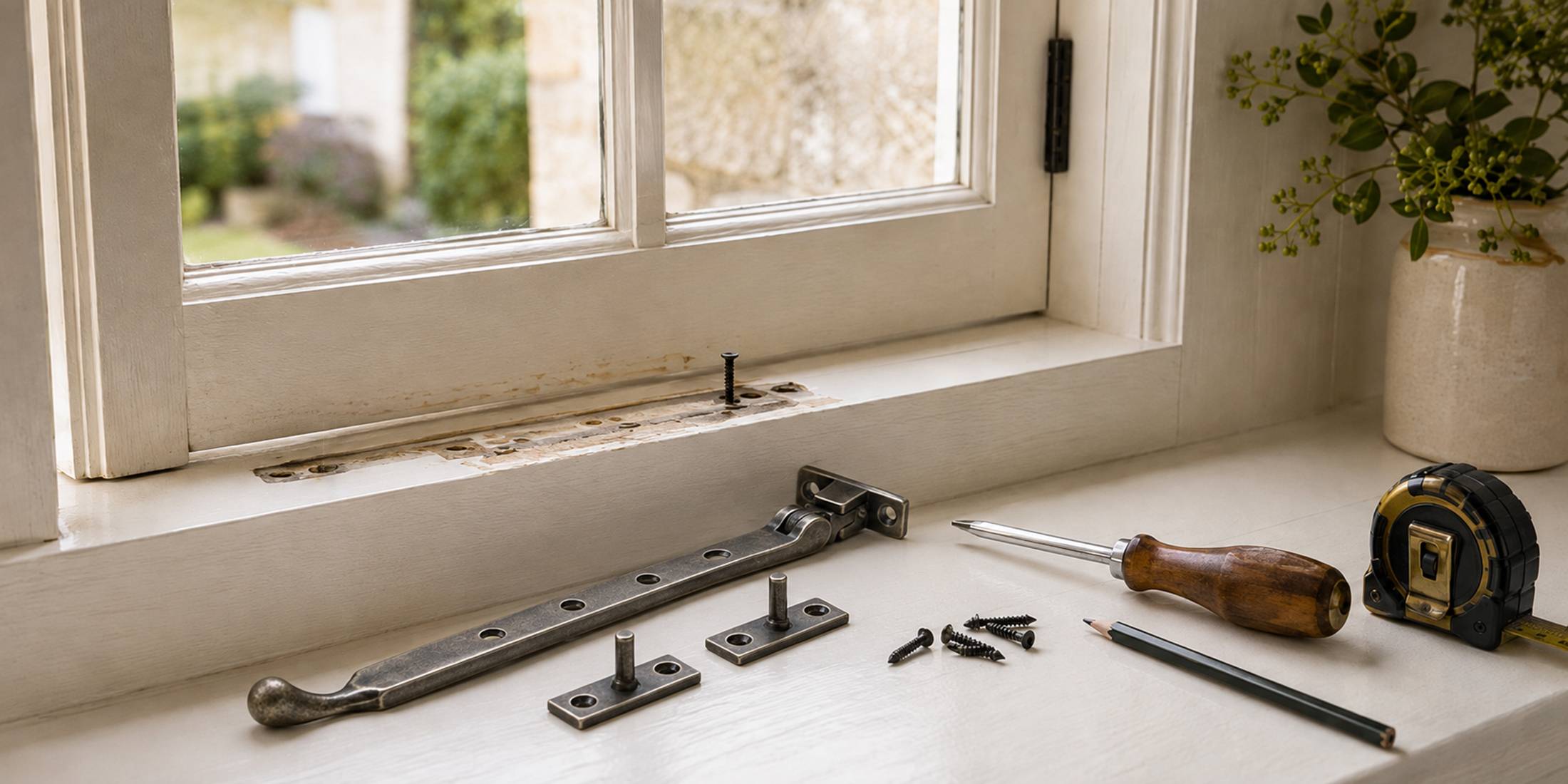

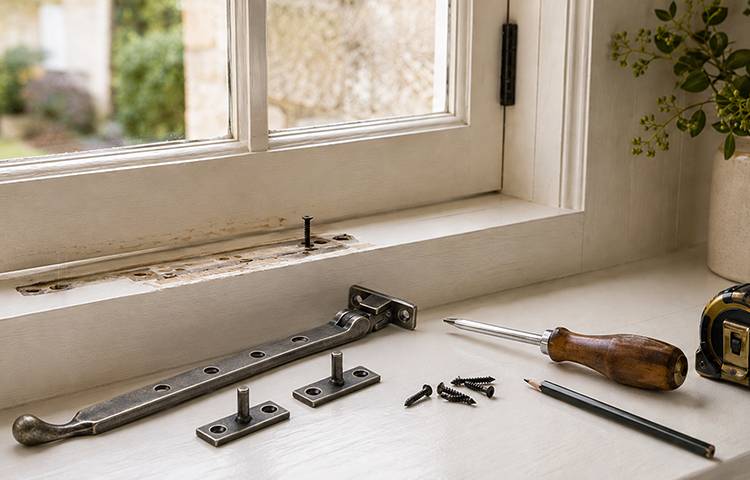

Replacing a Window Stay

A peg-style stay must suit the timber casement, available space and required opening positions. Compare the arm length, pivot plate and pin arrangement rather than relying only on the old screw holes.

The Avon Window Stay is available in several lengths and finishes. If the fixing pattern differs, repair unused holes and establish the new position before drilling.

For the fitting sequence, read How to Install Window Stays, or browse the Window Stays Collection.

Replacing a Casement Window Fastener

A surface-mounted fastener must match the way the casement meets the frame. Identify its keeper type and whether the fitting is handed or reversible.

The Locking Avon Fastener is reversible and supplied with mortice and hook plates. Its grub-screw locking feature does not remove the need to consider the security of the complete window.

Hold the fastener and keeper in position with the window closed before marking holes. Browse the Window Fasteners Collection.

Replacing an Espag Window Handle

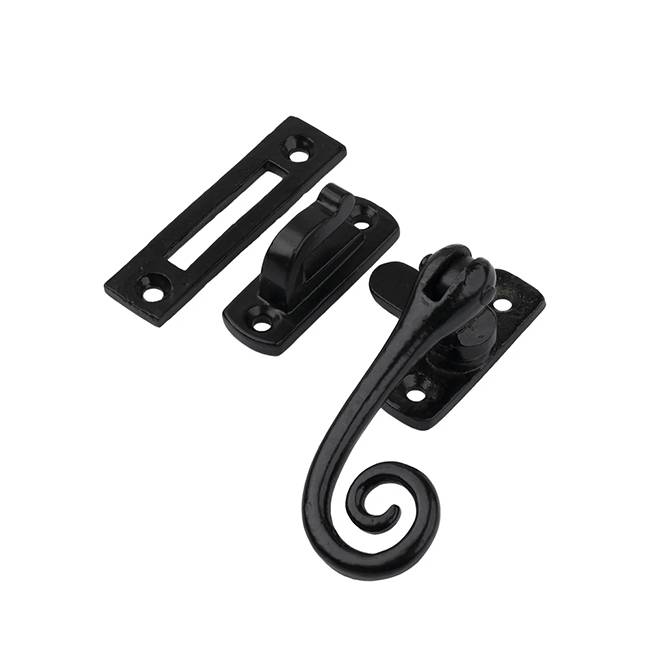

Black Monkey Tail Window Fastener

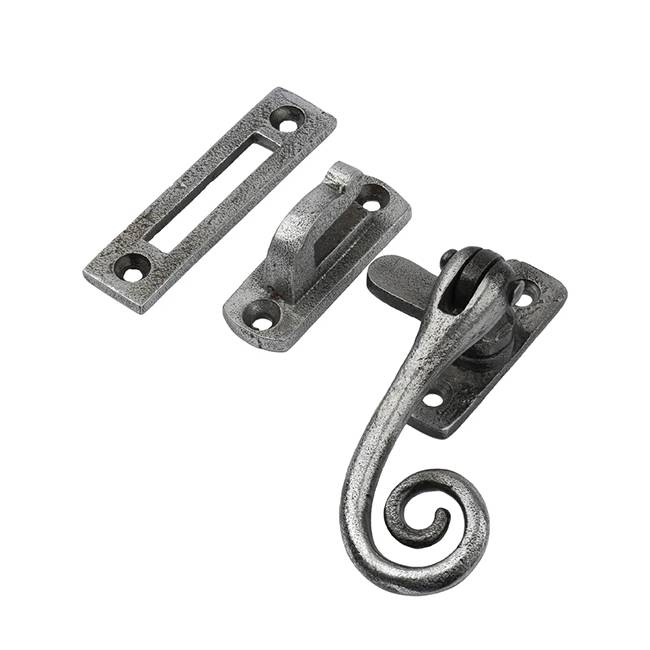

Pewter Monkey Tail Window Fastener

An Espag handle operates a gearbox within the window. Replacing the visible handle will only solve the problem when the gearbox and locking mechanism still work correctly.

Check the spindle, fixing centres, fixing plate, handing and clearance. The Newbury Espagnolette is handed, so identify the hinge side from inside the property before ordering.

For the full compatibility checklist, read What Is an Espag Window Handle?, or browse the Espag Window Handles Collection.

Replacing Sash Window Furniture

On a sliding sash window, identify whether you are replacing a fastener, lift, pull, stop or another fitting. Each has a different job and position.

A sash fastener must align across the meeting rails when the window is closed. The Brighton Sash Fastener Lock is a traditional example, but its name is not proof of a security rating. Check the product information and the window’s wider security needs.

Browse the Sash Window Furniture Collection.

Fixing Holes and a General Replacement Process

Reuse old holes only when the new fitting aligns exactly and the timber still provides a firm fixing. Do not pull a plate out of line to make screws fit. Repair split, enlarged or misplaced holes properly, and check the glazing position before drilling.

1. Close and support the window safely.
2. Photograph and measure the existing hardware.
3. Confirm that the window and any mechanism work correctly.
4. Remove the old fitting and inspect the timber.
5. Compare the replacement before drilling.
6. Fit it using suitable pilot holes and specified fixings.
7. Test the window in its open and closed positions.

Stop if the fitting binds, pulls sideways or prevents the window closing fully. Correct the cause rather than forcing it.

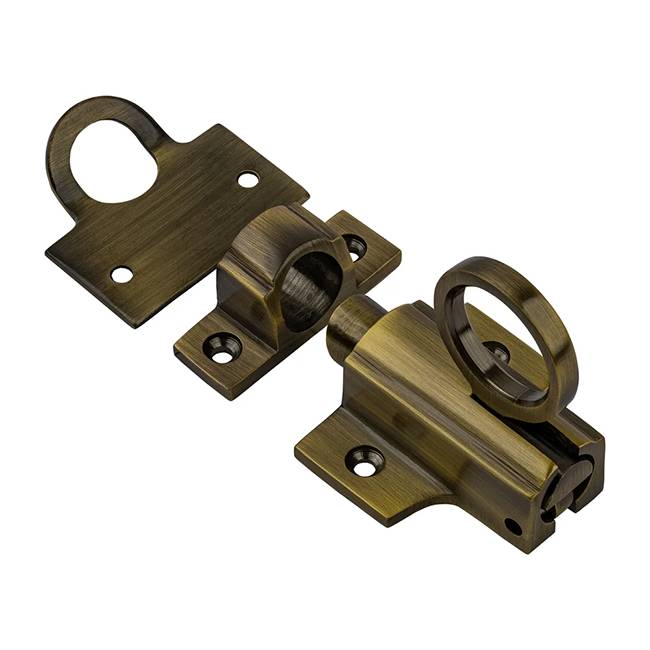

Fanlight Catch in Aged Brass

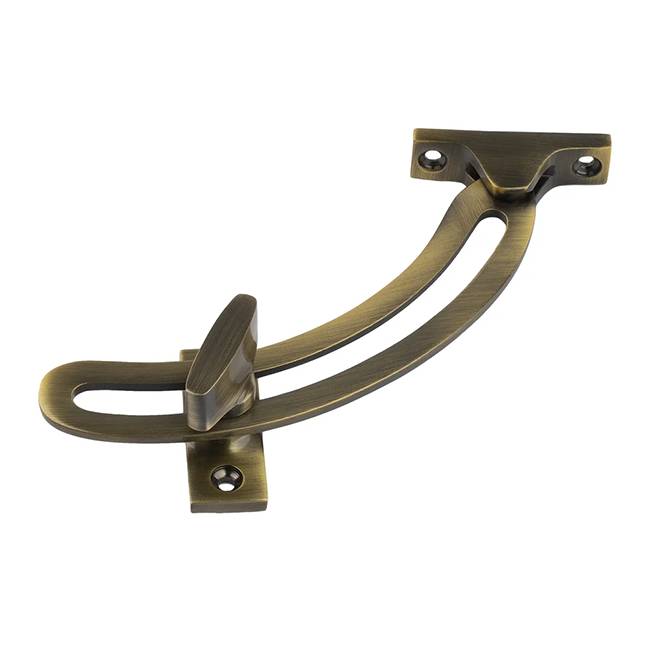

Quadrant Stay Aged Brass

When to Ask a Professional

Use an experienced joiner or window repair specialist where the timber is rotten or badly split, the window is out of square, the glazing is close to the fixing points, or an internal mechanism has failed.

Advice may also be appropriate for listed buildings, sensitive original joinery or any window that cannot be secured after removal.

Related Reading

These supporting guides explain the main identification, compatibility and fitting decisions in more detail:

• Window Furniture Explained
• What Is an Espag Window Handle?
• How to Install Window Stays

Conclusion

Successful replacement starts with correct identification. Establish the window type, confirm what the fitting does, record the measurements and check the condition of the window before ordering.

Choose the finish only after compatibility and fixing positions are settled. To compare the main product types, visit the Window Handles & Hardware Collection.

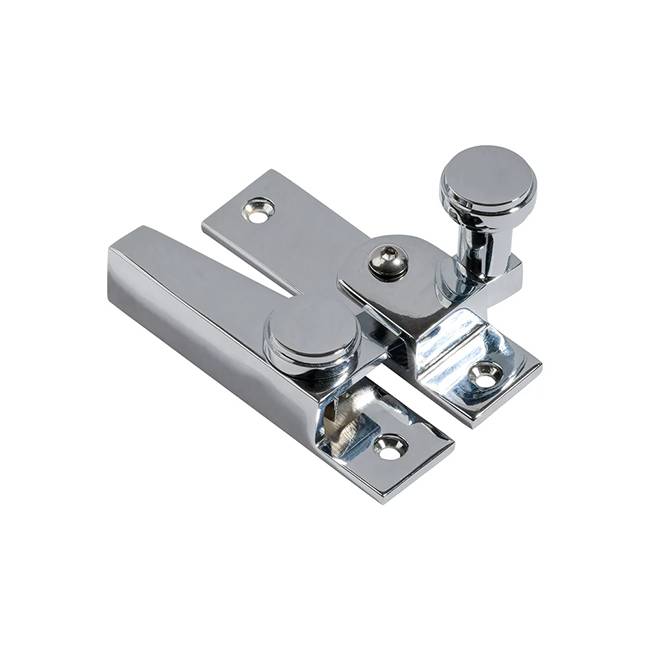

Classic Hook Plate Fastener Lock Polished Chrome

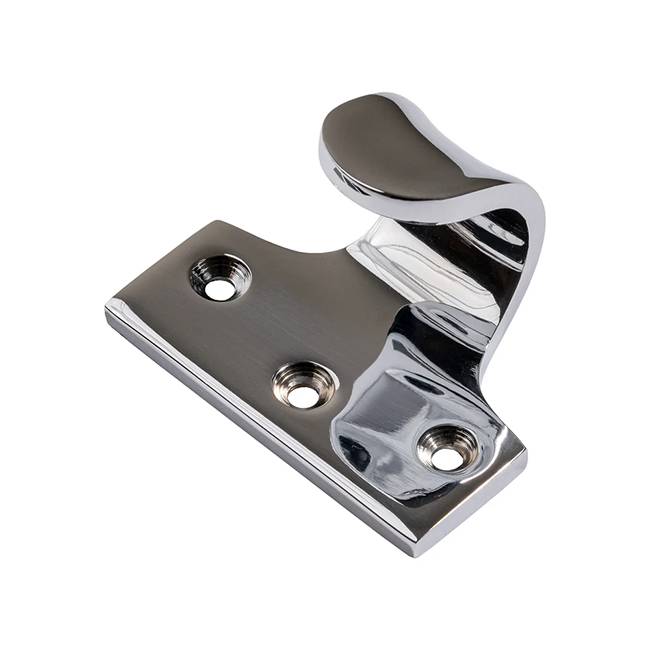

Sash Lift Hooks Polished Chrome

FAQ

Can window hardware be replaced without replacing the window?

Yes, when the window is sound and the replacement is compatible. Damaged timber, poor alignment or a failed internal mechanism may need repair first.

How do I identify replacement window hardware?

Identify the window type and how the fitting operates. Record its size, fixing centres, plate, keeper or spindle, handing and clearance.

Can I reuse the existing screw holes?

Only when the new fitting aligns precisely and the timber grips firmly. Damaged or misplaced holes should be repaired first.

Can a traditional fastener replace an Espag handle?

Not normally. A traditional fastener closes onto a visible keeper, while an Espag handle operates a gearbox inside the window.

Does a locking fitting make the window security-rated?

Not automatically. Security depends on the complete window, mechanism, keeps, fixings, frame and stated product specification.

When should I use a professional?

Seek help where the timber is damaged, the window does not close squarely, the internal mechanism has failed or fixing points are close to the glazing.
