What Is An Espag Window Handle?


Published: 20 January 2020 | Last Reviewed: 24 August 2026

This post is part of our regularly reviewed content series, ensuring all advice remains accurate and relevant to your home project.

Author: Carl Benson

Carl is the founder of Suffolk Latch Company, with a background in engineering and over 20 years’ experience in home hardware. He works closely with suppliers and designers alike to develop quality ironmongery that stands the test of time. Read my full bio.

Carl Benson

Espag Window Handles Explained

An Espag window handle operates an Espagnolette locking mechanism fitted within a casement window. A square spindle on the back of the handle enters the mechanism’s gearbox. When the handle is turned, the gearbox moves the locking points into or out of their keeps around the window frame.

The handle is only one part of the complete system. A replacement must suit the existing gearbox, spindle, fixing centres, handing and window profile. A handle that looks similar is not necessarily compatible.

This guide explains how Espag handles work, the difference between inline and cranked designs, how handing is identified and which measurements to check before ordering. To compare the full range, visit our Espag Window Handles Collection.

Table of Contents

What Is an Espag Window Handle?

“Espag” is short for Espagnolette. In modern window hardware, the term normally refers to a handle used to operate a compatible locking mechanism within a casement window.

The handle has a square spindle projecting from the back of its fixing plate. This spindle enters a gearbox inside the opening section of the window. Turning the handle operates the gearbox and moves the mechanism’s locking points.

An Espag handle should not be confused with a traditional surface-mounted casement fastener. The two products may look similar from the room side, but they work in different ways and are not normally interchangeable.

For a broader explanation of stays, fasteners, sash fittings and Espag handles, read Window Furniture Explained.

How Does an Espag Window Handle Work?

When the handle is turned, its spindle rotates the gearbox inside the window. The gearbox then moves the Espagnolette mechanism so its locking points engage with or release from keeps fitted around the frame.

The exact arrangement varies between window systems, but the main components are:

  • The visible window handle
  • The square spindle
  • The gearbox within the window
  • The Espagnolette mechanism and its locking points
  • The keeps fitted to the window frame

All these parts need to work together. If the handle moves but the locking points do not, or if the mechanism feels unusually stiff, the fault may be within the gearbox or locking system rather than the handle itself.

Some handles include a key, button, Allen-key feature or grub screw that restricts handle movement. This does not automatically mean the complete window has a recognised security rating. Security depends on the whole window, mechanism, keeps, fixings and frame condition.

“The handle is only one part of the system. If the gearbox or locking mechanism is faulty, replacing the handle alone may not solve the problem.”

Espag Handle vs Traditional Window Fastener

Espag window handle Traditional window fastener
Operates a mechanism fitted within the window Engages directly with a visible keeper or plate
Uses a square spindle to turn a gearbox Uses the handle or arm itself to close the casement
Must match the spindle, fixing centres and mechanism Must match the keeper, handing and window profile
Common on casements with Espagnolette locking systems Common on traditional timber casements with surface-mounted hardware

Do not replace one type with the other simply because the visible handle looks suitable. First identify whether the existing fitting operates an internal gearbox or closes directly onto a keeper.

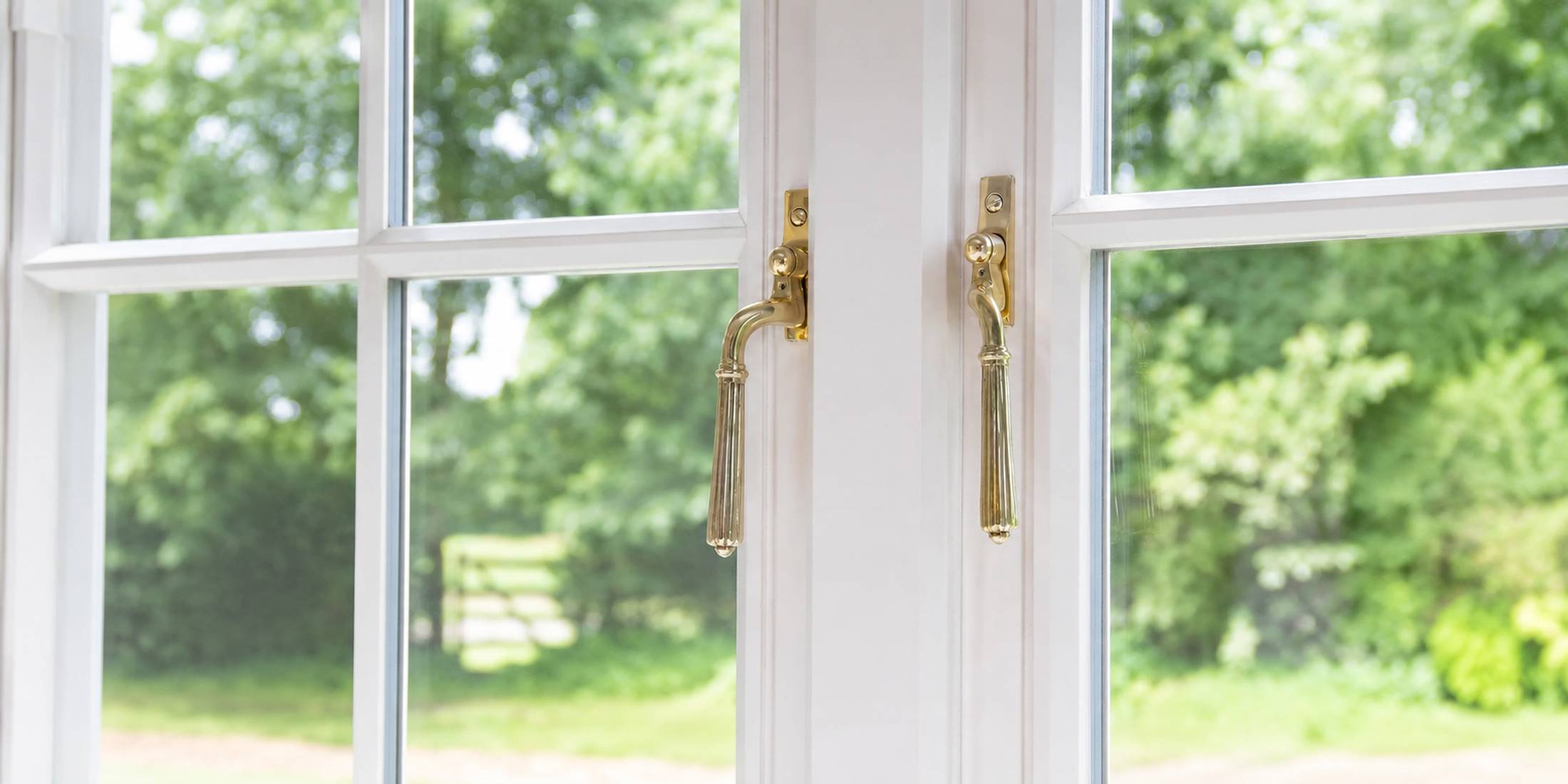

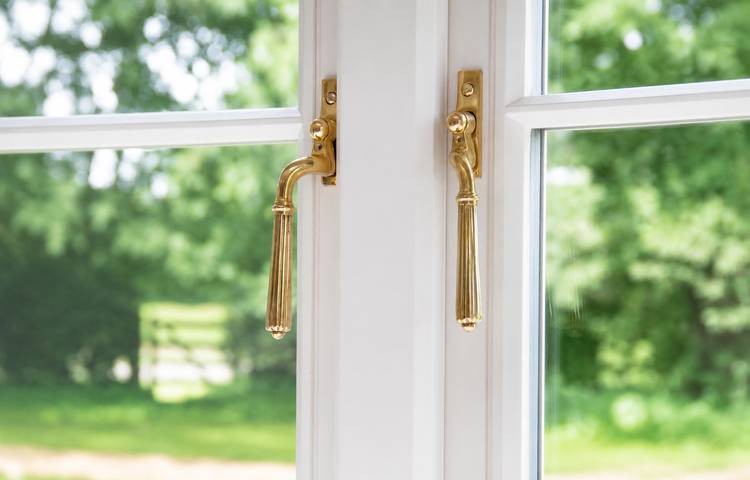

Hinton Espagnolette Left Hand Antique Brass

Hammered Newbury Espagnolette Antique Brass

Inline vs Cranked Espag Handles

Espag handles are often described as inline, straight, cranked or offset. These terms refer to the relationship between the grip and the fixing plate.

Handle type Description When it may be useful
Inline or straight The handle sits broadly in line with the spindle and fixing plate Where the window profile provides enough room for the hand to operate the handle
Cranked or offset The grip projects or moves away from the centre line of the fixing plate Where additional hand clearance is needed near the frame or window edge

An inline handle is not automatically universal, and a cranked handle is not automatically handed. Check the individual product description before ordering. The shape, handing and spindle arrangement must all suit the window.

Also check how far the handle projects into the room when closed. A heavily cranked handle may provide useful clearance when operated but could interfere with blinds, shutters or surrounding fittings.

“Choose the handle shape for clearance and comfort, but always check the product specification — inline does not automatically mean universal, and cranked does not automatically mean handed.”

Left- and Right-Handed Espag Handles

Many traditional-style Espag handles are handed, which means separate left- and right-hand versions are supplied.

For the handed Newbury, Hinton and Reeded Espagnolette handles in our range, identify the handing while standing inside the property and looking out through the window:

  • If the window is hinged on the left, select the left-handed version.
  • If the window is hinged on the right, select the right-handed version.

Do not rely only on the direction the old handle points when closed. Photograph the window from inside, record the hinge side and check the handing instructions on the individual product page.

Some inline handles are designed to work in either direction, but this should never be assumed. Manufacturers can describe handing differently, so follow the guidance supplied with the chosen handle.

“Do not judge handing from the direction the old handle points. Stand inside, note the hinge side and follow the handing guidance for the actual product.”

Reeded Espagnolette Aged Bronze

Teardrop Espagnolette in Black

How to Measure an Espag Window Handle

Before removing the existing handle, close the window and take clear photographs. Record the handle position, hinge side, fixing plate and any markings on the hardware.

The main checks are:

Measurement or detail How to check it Why it matters
Spindle width Measure across the square spindle The spindle must fit the gearbox correctly
Spindle projection Measure from the rear face of the fixing plate to the spindle tip A spindle that is too short may not engage; one that is too long may prevent the handle seating properly
Fixing centres Measure from the centre of one fixing hole to the centre of the other The replacement fixings need to align with the window system
Fixing plate size Measure the length, width and available clearance The new plate must fit the window profile and may need to cover old marks
Handing Record the hinge side while viewing from inside A handed handle must open in the correct direction
Handle clearance Check the space around the frame, blinds and nearby fittings This helps determine whether an inline or cranked design is suitable

Many Espag handles use a 7mm square spindle, but the required length varies. The current Newbury, Hinton and Reeded products each use a 7mm square, 40mm spindle; this is product-specific information and should not be treated as a universal size.

“A replacement Espag handle needs more than the right appearance. Spindle size, fixing centres, handing and plate dimensions all need to match the existing window.”

How to Measure the Spindle

If the existing handle can be removed safely, measure the spindle from the rear face of the fixing plate to the end of the square bar. Do not include the thickness of the visible handle or grip.

Check the spindle width as well as its projection. A replacement with the correct length but the wrong square size will not operate the gearbox properly.

Do not shorten a new spindle unless the product instructions specifically allow it and you understand the required finished length. Cutting it too short can prevent reliable engagement with the gearbox.

If the old handle is missing, damaged or not original to the window, the required spindle depth may need to be established from the gearbox and window profile rather than copied from the old fitting.

Slim Peardrop Espagnolette Pewter

Slim Monkeytail Espagnolette Pewter

Fixing Centres and Backplate Size

Fixing centres are measured from the centre of one screw or bolt position to the centre of the other. Do not measure from the outside edges of the holes.

The fixing plate also needs to fit the available window profile. A wide plate may interfere with the frame, while a narrow plate may expose old marks or fixing holes. Check the plate length, width and thickness against the existing window.

Fixings vary between products and window systems. Some handles use machine bolts into the existing mechanism, while others may use different fixings. Use the hardware supplied or specified for the product and avoid drilling new positions into the window unless compatibility has been confirmed.

Espag Handle Compatibility Checklist

Before ordering a replacement, confirm:

  • The window has an Espagnolette gearbox and locking mechanism.
  • The mechanism operates correctly and is not the cause of the fault.
  • The spindle width and projection are suitable.
  • The fixing centres match.
  • The fixing plate fits the available profile.
  • The handle is the correct hand or is genuinely universal.
  • The inline or cranked shape provides enough clearance.
  • The fixings suit the window and existing mechanism.
  • The handle material and finish suit the location.

Some slim fixing-plate Espag handles are listed as suitable for both timber and uPVC windows, but this does not make every handle compatible with every window. The gearbox, fixing centres, spindle and frame profile still need to match.

If the mechanism is damaged, badly worn or difficult to operate, replacing the handle alone may not solve the problem. Stop if the window cannot be secured and seek advice from a suitable window repair specialist.

“If the measurements match but the mechanism is stiff or damaged, stop there. Compatibility starts with a working gearbox, not just a matching handle.”

Styles, Materials and Finishes

Once compatibility is confirmed, you can choose a style and finish that suits the rest of the window furniture.

Available materials and finishes vary by product and can include steel, brass, bronze, black, chrome, nickel and marine-grade options. Living and unlacquered finishes can change in appearance over time, so check the relevant care guidance before ordering.

For locations where corrosion resistance is a particular concern, browse the wider Armor-Coat Window Furniture Collection. The current Armor-Coat Espag product information states Grade 5 corrosion resistance under BS EN 1670:2007 and compatibility with Accoya. Always check the individual product specification for the intended environment.

Shepherd's Crook Espagnolette Black

Monkeytail Espagnolette Black

Replacing an Existing Espag Handle

A straightforward handle replacement normally follows this sequence:

  1. Close and secure the window.
  2. Photograph the existing handle and record the handing.
  3. Remove the fixing screws or bolts carefully.
  4. Measure the spindle, fixing centres and fixing plate.
  5. Check that the gearbox operates correctly.
  6. Compare every measurement with the replacement product.
  7. Fit the new handle without forcing the spindle or fixings.
  8. Test the handle and all locking points before relying on the window.

Keep the old handle until the replacement has been fitted and tested. It can provide a useful reference if the new fitting does not align as expected.

For a broader replacement checklist covering different types of window hardware, read How to Replace Window Hardware.

These supporting guides explain related Window Hardware subjects:

Conclusion

An Espag window handle operates a locking mechanism within the window rather than closing directly onto a surface-mounted keeper. This means compatibility depends on more than the visible style.

Before ordering, check the handing, spindle width and length, fixing centres, fixing plate and available clearance. Confirm that the existing gearbox works correctly and that the replacement product is suitable for the window profile.

To compare traditional, period-style and high-performance options, visit our Espag Window Handles Collection.

FAQ

What is an Espag window handle?

An Espag window handle operates an Espagnolette locking mechanism fitted within a casement window. Its square spindle enters a gearbox, which moves the locking points when the handle is turned.

Are Espag window handles universal?

No. The replacement must suit the spindle, fixing centres, fixing plate, handing, clearance and existing gearbox. A similar-looking handle is not necessarily compatible.

How do I know whether I need a left- or right-handed Espag handle?

For the handed Newbury, Hinton and Reeded handles in our range, stand inside and look out through the window. If the hinges are on the left, choose the left-handed version; if they are on the right, choose the right-handed version. Always confirm the individual product guidance.

How do I measure an Espag handle spindle?

Measure from the rear face of the fixing plate to the end of the square spindle. Also measure the spindle width, because both dimensions must suit the gearbox.

What is the difference between an inline and a cranked Espag handle?

An inline handle sits broadly in line with its spindle and fixing plate. A cranked handle projects or offsets the grip to provide additional hand clearance. Either type may still be handed, so check the product description.

Can Espag handles be fitted to timber and uPVC windows?

Some slim fixing-plate models are listed as suitable for both timber and uPVC windows. Compatibility still depends on the gearbox, spindle, fixing centres, plate size and window profile.

Can I replace only the handle and keep the existing mechanism?

Yes, if the gearbox and locking mechanism are working correctly and the new handle is fully compatible. If the mechanism is stiff, damaged or not moving its locking points, the handle alone may not solve the fault.
