Introduction

No, door handles are not universal. Replacement handles must suit the existing latch or lock, spindle, door thickness and fixing positions. The rose or backplate must also fit the available space. Two handles can look similar and share a spindle size without being interchangeable.

Some replacements are straightforward once these checks match. Others need a different handle or further work. This guide explains what to compare before ordering, whether you are replacing an internal lever, bathroom handle or multipoint fitting.

Identify your handle type

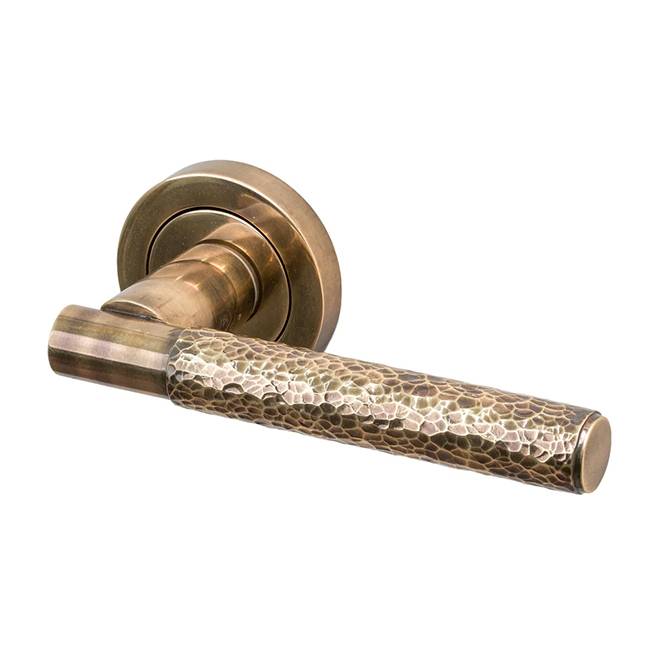

Polished Bronze Hammered Lever On Rose Door Handle

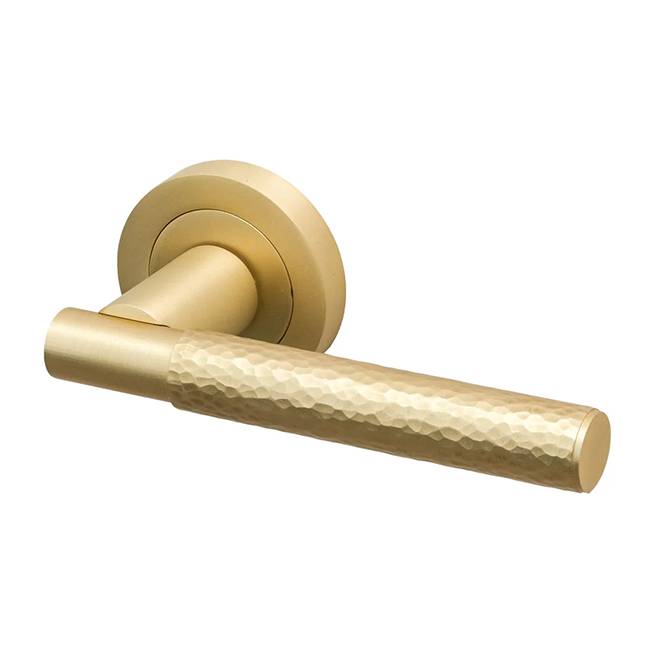

Satin Brass Hammered Lever On Rose Door Handle

Internal handles on rose or backplate

A rose is the small plate around the lever base; a backplate extends further down the door. Either format may operate a suitable latch or lock. Check the fixing method and any separate keyhole escutcheon or bathroom turn.

Our Phoenix Knurled Round Rose handles, for example, use concealed bolt-through fixings. These need a compatible fixing route through the door and latch or lock arrangement.

Bathroom and keyed handles

A bathroom backplate needs its turn spindle to align with the bathroom lock. A keyed backplate needs the correct keyhole position and profile. Matching the main handle spindle alone is insufficient.

The lock and bathroom versions of our Cottage Lever Handles are specified for 57 mm centre sash locks. This is a requirement for those versions, not every backplate handle.

Multipoint and patio handles

Multipoint handles are not restricted to uPVC. Suitable systems are also fitted to composite and timber doors. Match the particular lock and handle arrangement, including any split spindle or offset between the inside and outside lever positions.

Changing from lever/lever to lever/pad can affect how the door opens from outside. Confirm compatibility before changing that arrangement. Sliding, tilt-and-slide and lift-and-slide patio doors may need different hardware; identify the mechanism before choosing a replacement.

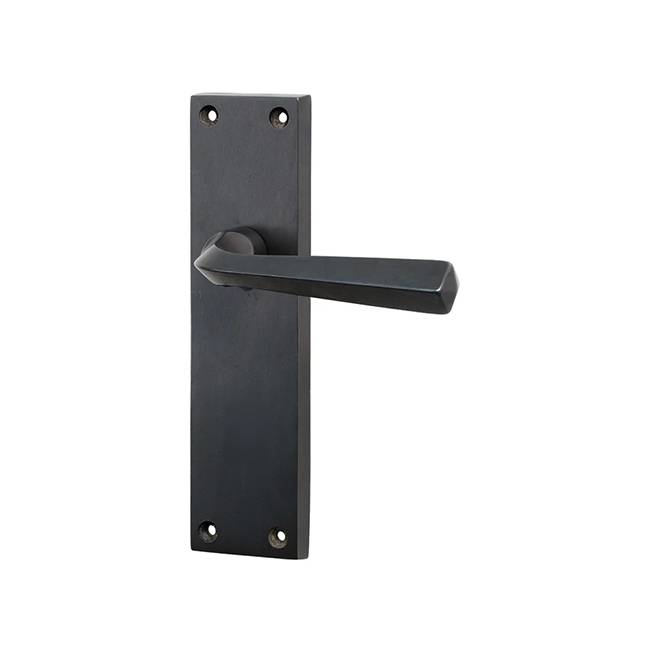

Rustic Bronze Bridgnorth Door Handle On Backplate

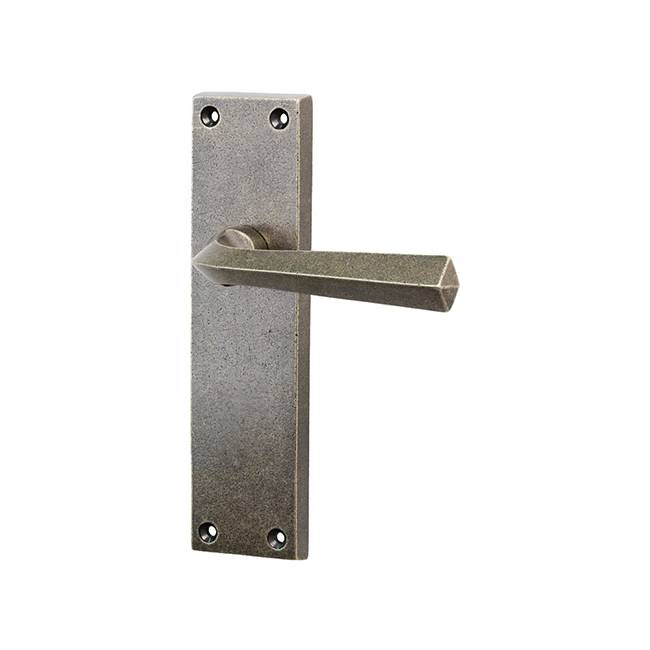

White Bronze Bridgnorth Door Handle On Backplate

Door handle compatibility checklist

Compare the existing arrangement with the exact replacement drawing. If a detail is hidden or unclear, check it before buying or drilling.

Three measurements that are often confused

• Backset: the distance from the door’s closing edge to the handle spindle centre. When checking the mechanism, use its drawing’s faceplate reference.
• Lock centres: the distance between the handle spindle centre and the keyhole or bathroom turn centre. On euro-profile handles, PZ runs to the cylinder keyway centre.
• Fixing centres: the distance between fixing screw centres. Also compare each fixing’s position relative to the spindle.


Our Brompton Slimline Multipoint handle lists 92 mm lock centres and 212 mm fixing centres. Matching its 92 mm measurement alone does not establish a fit.

There is no single measurement shared by every handle. Our backset guide explains the measuring points in more detail.

Polished Bronze Reeded Slimline Multipoint Door Handle

Polished Nickel Reeded Slimline Multipoint Door Handle

Can you keep the existing latch or lock?

Often, yes, if it is in good condition and compatible with the replacement handles. Check the spindle connection, spring return and fixing route. Never drill through a fitted lock case to make incompatible screw positions work.

Unsprung handles rely on the mechanism for return, so confirm that it can support the proposed handle or knob. Adding a sprung handle does not repair a damaged latch or gearbox.

Keeping the same latch or lock also retains its operating centre. Changing the handle alone does not move the backset. Check hand clearance and the full movement of the new lever or knob.

What does “universal” mean on a handle?

It may describe adjustable fixing positions, reversible handing or suitability for several models within a particular lock family. Read the limits attached to the description.

An 8 mm square spindle is common on many UK lever handles, but its width does not establish the correct length or connection. Some fittings require their own spindle system. Use the components specified for the replacement handle rather than assuming the old spindle will work.

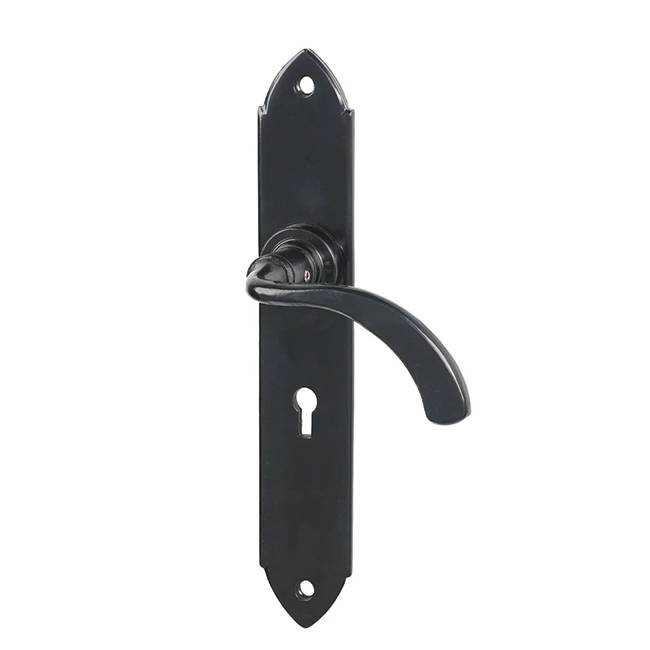

Black Gothic Curved Sprung Lever Handles

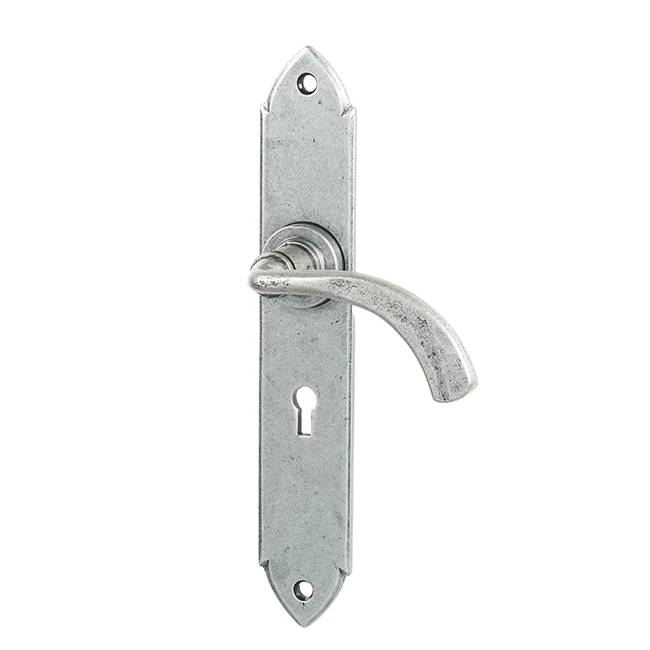

Pewter Gothic Curved Sprung Lever Handles

Before ordering replacement handles

Keep photographs of both handles and the door edge alongside your measurements. Note any manufacturer or model markings and compare the relevant drawing. Check whether you are buying handles only or a set containing a latch or lock.

Finish and material matter too: confirm suitability for the intended indoor or outdoor conditions. A handle designed for internal use should not be chosen for an exposed entrance simply because its dimensions match.

For a fire door, check the door’s certification and supporting instructions before changing hardware. The BWF Fire Door Alliance explains why hardware must suit the complete door assembly. Obtain specialist advice where fire, escape or security requirements are uncertain.

Conclusion

Choose a replacement by checking the complete fitting, not just its appearance or one dimension. Once the mechanism, measurements and fixing method are confirmed, compare suitable designs in our door handle range.

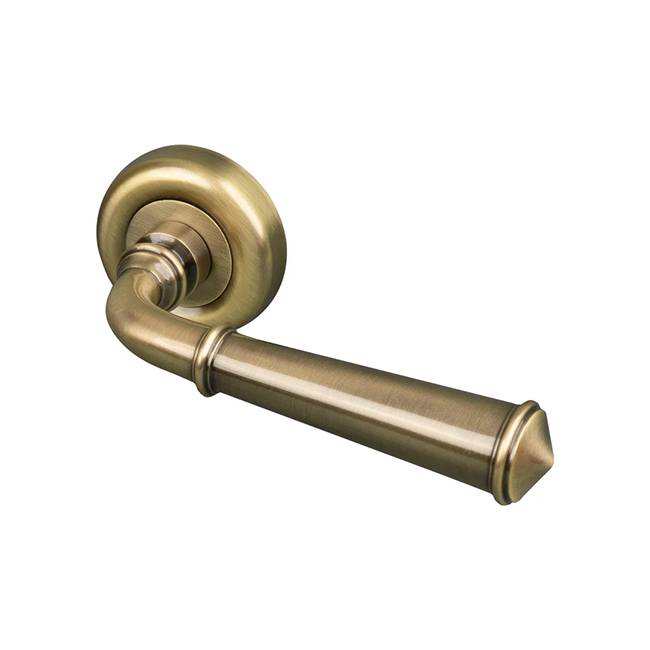

Antique Brass Colonial Round Rose Door Handles

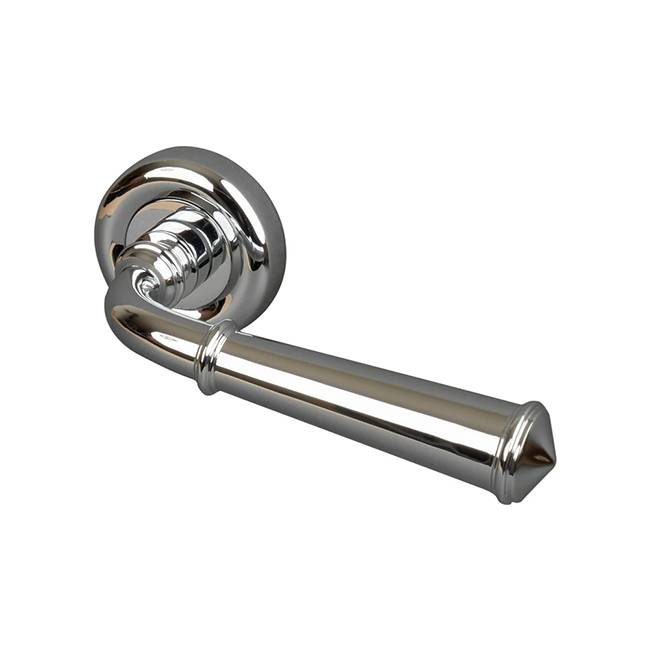

Polished Chrome Colonial Round Rose Door Handles

Frequently asked questions

Are internal door handles universal?

No. Internal handles can share common dimensions while using different fixings, spring arrangements or spindle connections. Check the door thickness and existing latch or lock before choosing a replacement.

Are uPVC door handles interchangeable?

Only when the relevant specifications match. PZ, screw positions, spindle arrangement and operation all matter. “For uPVC doors” does not identify one universal fitting.

Are patio door handles universal?

No. Hinged, sliding and lift-and-slide doors can use different operating systems. Match the replacement to the particular mechanism and manufacturer’s requirements.

Can I replace a door knob with a lever handle?

Often, but check the latch, spindle, springing, fixing positions and coverage of existing holes. Confirm that the lever has room to move without catching the frame.

Can I change a backplate handle to a handle on rose?

Sometimes. A smaller rose may expose old screw holes or paint marks, and the new fixings must have suitable support. You may also need a separate keyhole escutcheon or bathroom turn.

Do all door handles use the same spindle?

No. Spindle dimensions, engagement and connection systems vary. A bathroom turn may use a different spindle from the lever above it, so check both where relevant.
