How to Fix Multipoint Door Handles

Author: Carl Benson

Carl is the founder of Suffolk Latch Company, with a background in engineering and over 20 years' experience in home hardware. Read Carl's full bio.

Introduction

To work out how to fix multipoint door handles, first separate a loose fixing or drooping lever from a door-alignment or lock-mechanism fault. Replacing the handle will not necessarily solve the problem. Start with the symptoms, make only the checks appropriate to your system, and stop if operation needs force.

This guide covers initial checks on an accessible door. For the parts and measurements involved, see Multipoint Door Handles and Locks Explained.

Antique Brass Art Deco Multipoint Door Handle

Aged Bronze Art Deco Multipoint Door Handle

Before you start

If the door opens normally, keep it safely open while checking the handle, with the key to hand. For rented property, speak to the landlord before repairs. Fire doors need a competent specialist: the BWF Fire Door Alliance explains why hardware must match the door's certification.

First follow your system's normal unlocking sequence. Not every multipoint lock lifts to lock: automatic and key-operated systems behave differently. Never press triggers or override an anti-misoperation device to imitate a closed door.

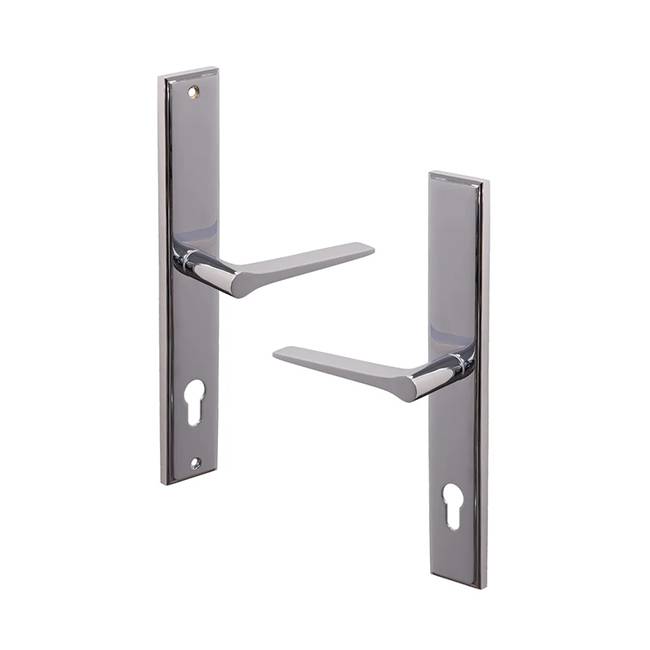

Polished Chrome Gio Multipoint Door Handle

Satin Brass Gio Multipoint Door Handle

Identify the symptom

Note when the fault began and whether it followed a handle change, building work or a change in weather. The following observations are clues, not a confirmed diagnosis.

Loose or drooping handles

A loose backplate

Check whether the whole plate moves or just the lever. They are different faults. If accessible internal handle-fixing screws are loose, and the instructions permit it, hold the plates aligned and tighten those screws gradually and evenly with the correct hand screwdriver.

Stop if a screw turns without gripping, the plate distorts or operation becomes stiff. Do not substitute longer screws, apply adhesive or tighten unidentified screws along the lock strip.

A lever that does not spring back

A drooping uPVC door handle does not automatically mean the handle needs replacing. Return springs may be in the handle, the lock or both. The required arrangement depends on the system.

A worn spring cassette is one possibility; poor alignment or another mechanism fault can produce similar symptoms. Only use a replacement cassette listed for that handle. Adding springs to an unsuitable set is not a general repair.

A stiff handle or one that will not lift

With the door already open, try only the normal movement permitted by its instructions. Stop at resistance. Do not repeatedly close a suspect door just to reproduce the fault.

On a manual system that permits open-door operation, easier movement open than closed suggests that the locking points are meeting resistance at the frame. Keeps are the fittings that receive those locking points. A dropped door, displaced keep or door movement may be involved.

Look for rubbing marks, an uneven gap or visible debris without removing parts. Record what you see for the installer. Do not file keeps, move hinges or pull the door upwards by its handle to make it lock.

If the stiffness started after fitting new handles

Overtightened fixings or misaligned plates can cause binding. The spindle and screws must also suit the handle and door thickness. Recheck the exact fitting instructions; do not leave screws loose as a permanent solution. Our multipoint handle fitting guide covers replacement on a working, accessible door.

Black Regency Multipoint Door Handle

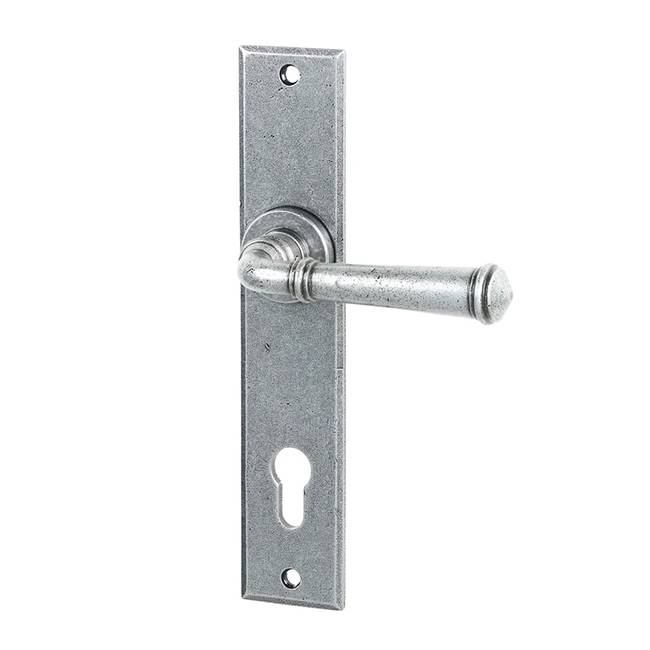

Pewter Regency Multipoint Door Handle

Key and lock-mechanism problems

If the handle moves but the locking points fail to respond, or you hear new grinding or crunching, stop. These symptoms need assessment of the spindle connection and lock mechanism. They do not identify a particular failed part on their own.

Difficulty turning the key can involve the cylinder, the lock or pressure from the door's alignment. Do not use pliers on the key. Tell the locksmith whether the problem affects the handle, key or both, and whether it occurs with the door open.

A gearbox is the central operating unit within the locking system. It is not interchangeable simply because another one looks similar. Manufacturer service arrangements differ: Winkhaus, for example, supplies complete mechanisms rather than separate replacement gearboxes.

Repair or replace the right component

Before ordering anything, send the supplier or repairer:

• Clear photographs of both handles and the accessible door edge.
• Any visible manufacturer name, part number or markings on the metal faceplate.
• The door material, symptoms and any recent changes.
• The measurements requested for that particular handle or lock.

Do not dismantle the lock to find hidden identification marks. A photograph of the lever alone is unlikely to identify the mechanism inside the door.

If the handle itself is confirmed faulty, browse our replacement multipoint door handles. Match the operating arrangement, springing, fixing positions, spindle and door-thickness requirements before choosing a finish. The same PZ measurement alone does not establish compatibility. A new handle cannot correct a misaligned door or repair a damaged lock.

If the handle itself is confirmed faulty, match the operating arrangement, springing, fixing positions, spindle and door-thickness requirements before choosing a finish. The same PZ measurement alone does not establish compatibility. A new handle cannot correct a misaligned door or repair a damaged lock.

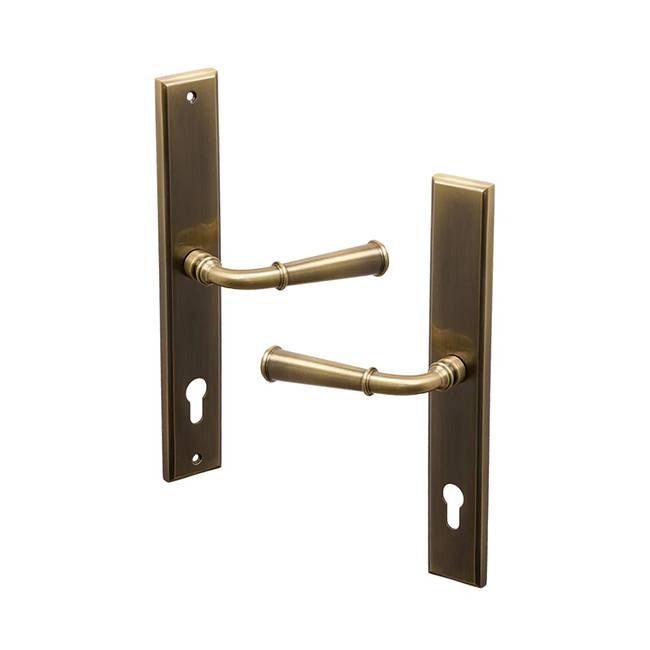

Aged Brass Colonial Multipoint Door Handle

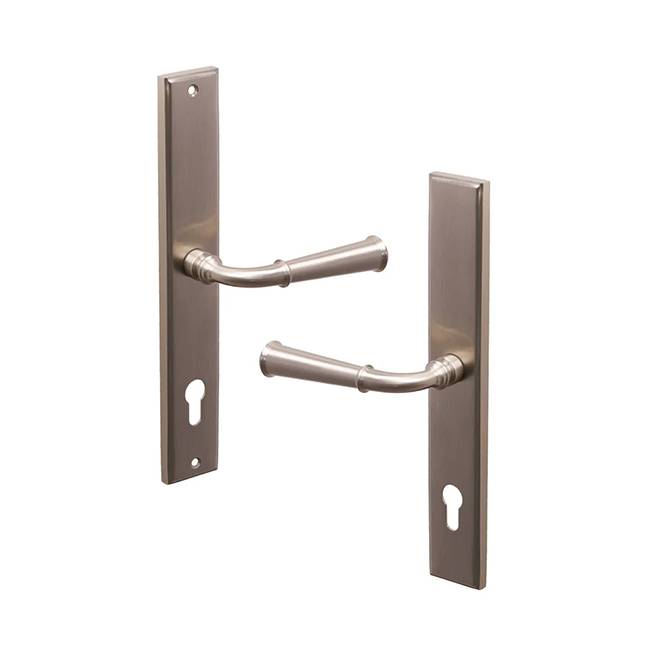

Satin Nickel Colonial Multipoint Door Handle

Maintenance and final checks

Use the lubricant, application points and maintenance interval specified for the exact mechanism. The handle, lock strip and cylinder may have separate care instructions. Do not assume one spray is suitable everywhere or flood the gearbox to treat unexplained stiffness.

After a permitted minor correction, check smooth operation with the door open as instructed. Before closing, return the lock to its normal open-door condition, with projecting locking bolts retracted where required. If anything still catches or behaves inconsistently, have it checked before normal use.

Conclusion

Identify what moves, what resists and when the fault appears. A small fixing problem may be straightforward; alignment and internal lock faults need a different repair. Diagnose first, then replace only the component confirmed at fault.
