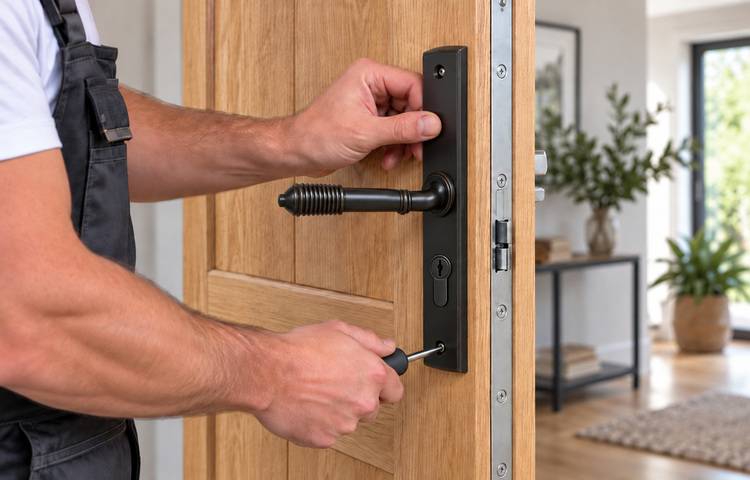

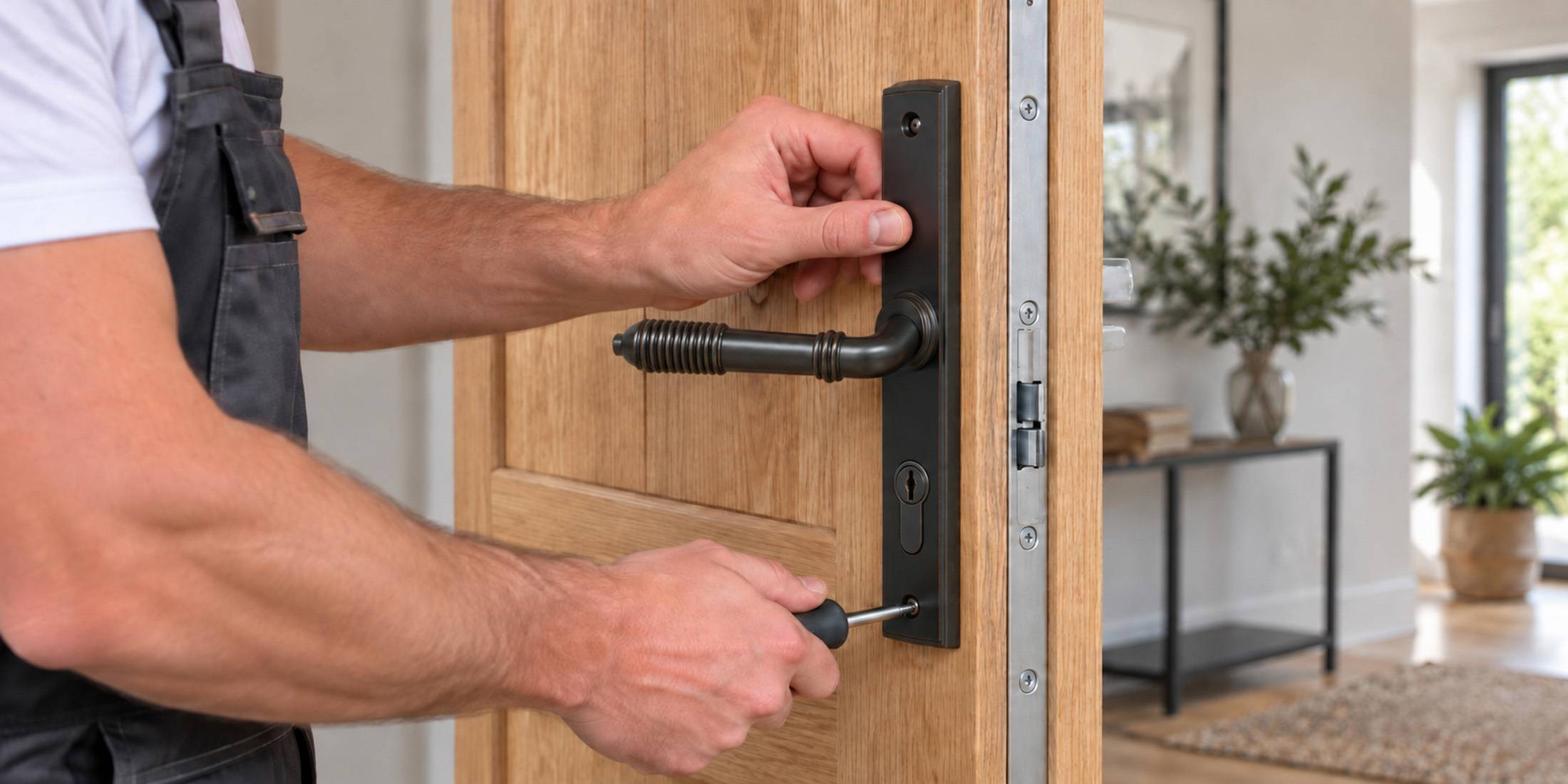

How to Fit a Multipoint Door Handle

Published:   |  Last Reviewed:

Author: Carl Benson

Carl is the founder of Suffolk Latch Company, with a background in engineering and around 20 years’ experience in architectural ironmongery. He works with suppliers and manufacturers on the company’s hardware range. Read my full bio.

Carl Benson

Introduction

To fit a replacement multipoint door handle, first confirm that the new set matches the existing lock and door preparation. Secure the door open, remove the old handles, fit the specified spindle and fixings, then test the operation before closing the door.

This guide covers an inline lever/lever pair, with the handles opposite one another, on an accessible door with a working lock. Multipoint fittings vary between manufacturers. Offset handles, lever/pad sets and split-spindle locking arrangements need their own instructions.

Confirm the Replacement Is Compatible

"Multipoint door handles are not made to one standard size. Check the PZ centres, fixing positions, spindle and backplate dimensions before removing the existing set."

Compare the exact product drawing and instructions with your existing handles before removing them. Check:

  • PZ centres, fixing positions and backplate dimensions.
  • Spindle size, length and arrangement, plus the supported door thickness.
  • Sprung or unsprung requirements and any left- or right-handed version.
  • Clearance around the cylinder, door frame, seals and lever movement.

Our guide to multipoint door handles and locks explains these checks in detail. Matching the PZ measurement alone does not establish compatibility.

Spring arrangements also differ. Our Armor-Coat sprung multipoint handles use separate cassettes behind the backplates, while the From The Anvil slimline Art Deco set has springs within the handle bosses. Check the selected product’s instructions for assembly.

Antique Brass Art Deco Multipoint Door Handle

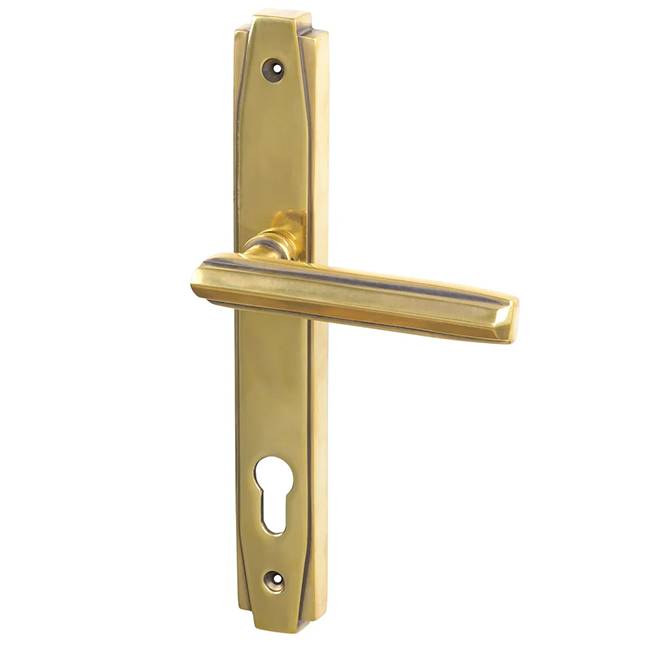

Aged Bronze Art Deco Multipoint Door Handle

Materials and Tools Needed

  • A compatible handle pair, with the specified spindle and fixing pack.
  • A hand screwdriver with the correct tip.
  • A tape measure or ruler.
  • A door wedge, a soft cloth and a tray for loose components.
  • An Allen key or release tool, if required by the handle design.
  • The fitting instructions for the selected handles and lock.

A straightforward replacement using matching existing holes should not need drilling. Any preparation of a new door is a separate job governed by its specifications.

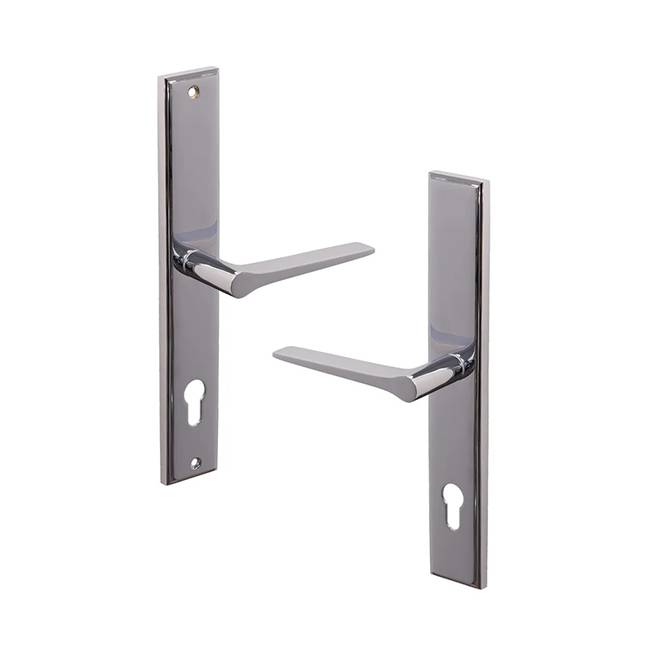

Polished Chrome Gio Multipoint Door Handle

Polished Chrome Gio Multipoint Door Handle

How to Fit the Replacement Handles

1. Secure the Door Open

Wedge the door securely open and keep the key within reach. Leave enough room to reach both sides. Photograph the existing handles and note how the lever and key operate before taking anything apart.

If the door is jammed shut or the mechanism already needs force, have the fault identified first. A replacement handle cannot correct every lock problem.

2. Remove the Existing Handles

"Keep the door securely open and support the outside handle while removing the internal fixings. Retain every component until the replacement has been checked and fitted."

Support the outside handle while undoing the fixing screws, normally accessible from inside. Place the screws in your tray, then ease the handles away from the door without scratching the finish.

If a lever has a grub screw, loosen it with the specified Allen key. Other connections use a release tool instead. Follow the removal method for that handle if it does not come away freely.

Withdraw the spindle where the design allows and keep any separate cassettes, washers or gaskets together. Retain the old components until the replacement has been checked.

3. Check the Spindle and Fixings

Compare the removed parts with the replacement pack and drawing. Use the spindle and screws specified for the new handle and your door thickness. Do not assume the old spindle will suit a different connection system.

The spindle must engage both handles as specified. Shortening it or the screws is appropriate only where the instructions permit it. If the required length or engagement is unclear, ask the supplier before fitting.

4. Position the New Handle Pair

Identify the inside and outside backplates and check the lever direction. Fit any separate spring cassettes, gaskets or washers in the orientation shown by the manufacturer.

Following the specified assembly order, pass the spindle through the lock’s square opening and locate the handles on either side. Align the cylinder openings and existing fixing holes. The plates should seat against the door without being forced.

5. Tighten the Fixings Evenly

"Start the fixing screws by hand and tighten them gradually. Never use the screws to pull misaligned backplates or trapped components into position."

Support the outside handle and start the bolt-through screws by hand. Each screw should enter its matching fixing smoothly. Keep the backplates aligned while tightening them gradually with a hand screwdriver.

Check handle movement as you tighten. Secure the plates as instructed without overtightening, and fit any specified grub screws. Do not use the fixing screws to pull a misaligned handle or trapped component into position.

6. Test with the Door Open

Operate both handles and check that they move and return as intended. Follow the lock manufacturer’s testing sequence for the latch, locking points and key. Automatic systems may require a different test procedure.

Stop if anything catches or needs force. Before closing a manually operated system, retract any hooks or bolts extended during testing so they cannot strike the frame.

Black Regency Multipoint Door Handle

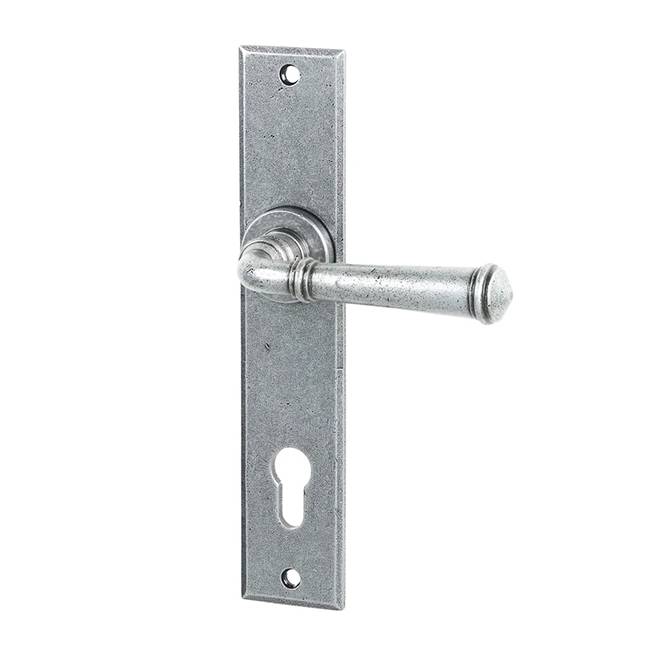

Pewter Regency Multipoint Door Handle

Final Checks and Adjustments

"Test the handles, key and locking points while the door is open. Only close the door once every part moves freely and operates as intended."

Once the open-door checks pass, close the door gently and test the normal locking and unlocking sequence from both sides, keeping the key with you. Confirm that the plates remain secure and neither lever catches the frame.

If tightening introduced stiffness, reopen the door and check alignment, spindle fit and the position of any cassettes or gaskets. If resistance appears only when the door is closed, the door or keeps may need attention. Do not force the handle or leave its screws loose as a remedy. Persistent resistance needs an installer or locksmith’s assessment.

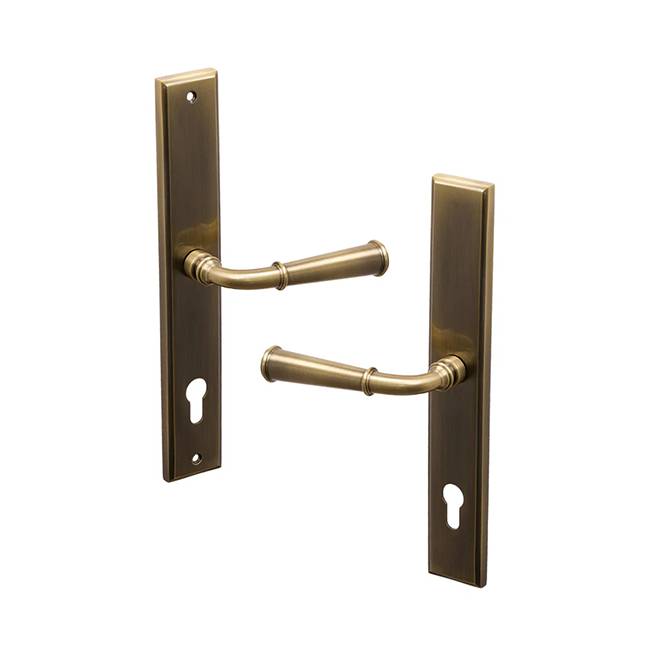

Aged Brass Colonial Multipoint Door Handle

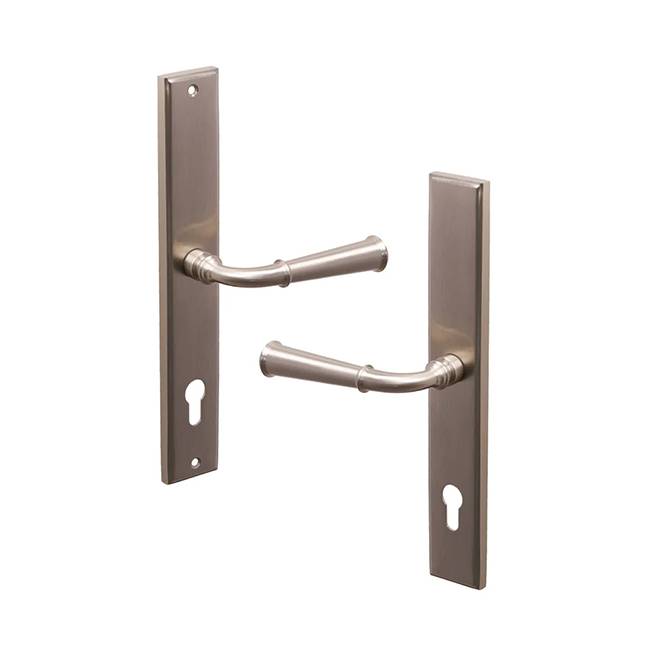

Satin Nickel Colonial Multipoint Door Handle

Conclusion

A successful replacement begins with compatible components and ends with checking the complete door operation. Compare the drawings, follow the supplied fitting sequence and resolve resistance before putting the door back into use. Browse our multipoint door handles for product dimensions and available options.

Frequently Asked Questions

Do I have to replace the cylinder too?

Not necessarily. A serviceable cylinder can remain if it is compatible with the new backplates and the complete door specification. Replacing handles does not automatically require a cylinder change.

Can I drill new fixing holes?

Only where the exact handle, lock and door specifications permit it. Different hole positions can put fixings in the path of the lock mechanism. Confirm the permitted preparation before drilling.

Why will the handle not lift after fitting?

First confirm that your lock is designed for lift-to-lock operation. If it is, stop and check compatibility, spindle engagement, fixings and alignment. Do not force the lever; persistent resistance needs professional assessment.

Does this guide cover lever/pad or split-spindle sets?

No. Those arrangements can change how the outside handle operates the lock. Use the exact instructions and specified components for that handle and locking system.
