Introduction

A multipoint door handle operates a lock that secures a door at several positions along its edge. Many work by lifting the lever before turning the key. If you are replacing one, however, appearance and backplate length are only the beginning: the handle must suit the existing lock, fixing positions and spindle arrangement.

This guide explains lift-to-lock operation and the checks that help you choose a compatible replacement.

What is a multipoint door handle?

The handle connects to the lock through a spindle: a square metal bar passing through the door. Operating it moves the mechanism inside the door. The locking points may include hooks, bolts or rollers, depending on the system.

Multipoint handles are common on uPVC and composite doors, but compatible systems also serve timber and aluminium doors. A long backplate or euro-cylinder keyhole does not prove compatibility. Check the mechanism and product drawing, rather than choosing by the door material alone.

For the components inside the door, see what a multipoint door lock is and how it works.

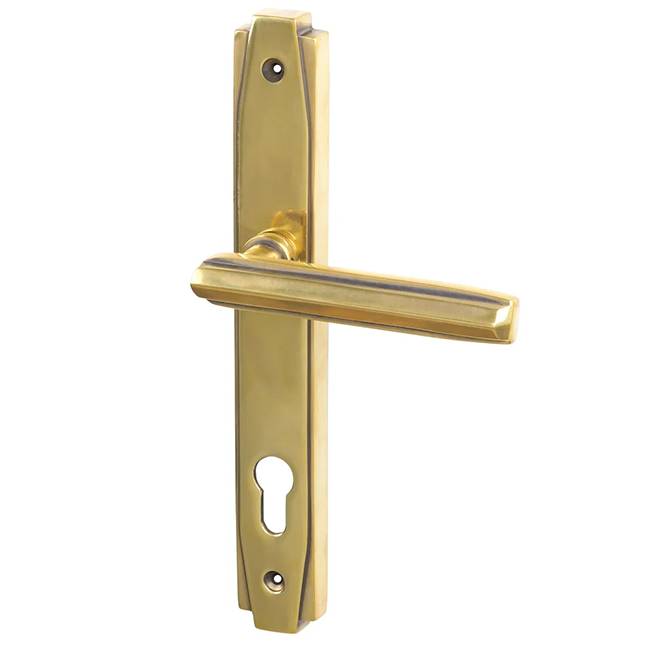

Antique Brass Art Deco Multipoint Door Handle

Aged Bronze Art Deco Multipoint Door Handle

Why do some door handles lift up to lock?

On a conventional lift-lever multipoint lock, raising the handle drives the additional locking points into their matching keeps in the frame. Turning the key then completes the locking action. Follow the instructions for your particular lock: lifting the handle alone should not be assumed to leave it securely locked.

To open this type, you normally unlock with the key and depress the lever to retract the locking points and latch. Some arrangements require the key to withdraw the latch from outside.

Not every multipoint lock is lift-to-lock. Key-operated systems and automatic mechanisms work differently. For example, Winkhaus explains that its autoLock AV2 engages its hooks when the door closes, without lifting a lever.

If you need to heave the whole door upwards or force the handle, that is different from normal lift-to-lock operation. Have the alignment and mechanism checked before buying replacement handles.

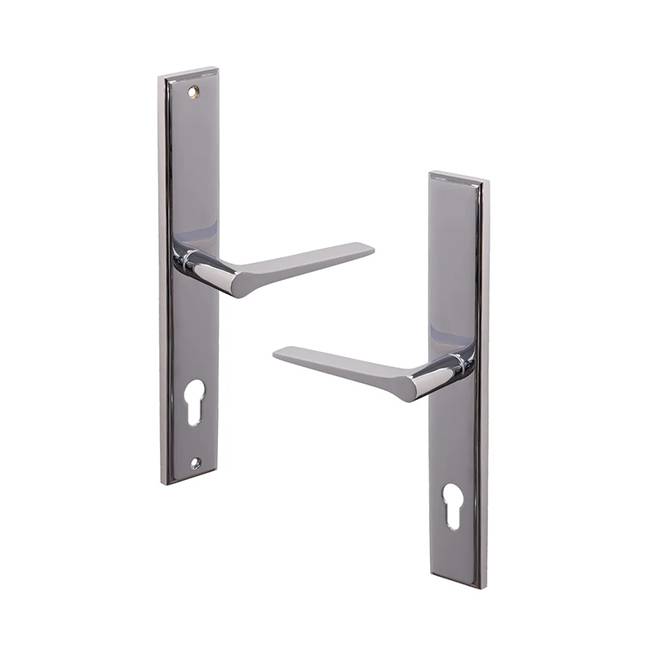

Polished Chrome Gio Multipoint Door Handle

Satin Brass Gio Multipoint Door Handle

Lever/lever, lever/pad and spindle arrangements

Lever/lever

These sets have a lever on each side. With a conventional solid spindle, either lever can normally withdraw the latch when unlocked. Check the lock specification: the shape of the handles does not establish their operating function.

Lever/pad

A lever/pad set combines an internal lever with an external pad. Pads may be fixed or movable; some sit at a different height from the inside lever. Record both sides before ordering.

Split and offset spindles

A compatible split-spindle system can allow different operation inside and outside, so the external handle cannot withdraw the latch without the key. Offset arrangements use separate spindle positions. Neither function can be created simply by fitting a different-looking handle: the lock must support it.

Before changing the arrangement, confirm whether you could be locked out when the door closes.

Measurements to check before ordering

Photograph both handles and any lock identification on the door edge. Record measurements in millimetres and compare them with the exact replacement’s drawing. 92 mm PZ is common, but it is not a universal fitting size.

PZ and backset are different measurements. PZ measures between the spindle and cylinder; backset measures horizontally from the front of the lock faceplate to the spindle centre. Backset helps identify the lock but cannot replace the handle checks above.

An 8 mm square spindle is common, but check the size, length and arrangement your particular lock needs.

A thicker or thinner replacement backplate can change how far the existing cylinder projects. Check its fit too. HOPPE’s buying checklist also highlights spindle size, centres, handing and door thickness.

Black Regency Multipoint Door Handle

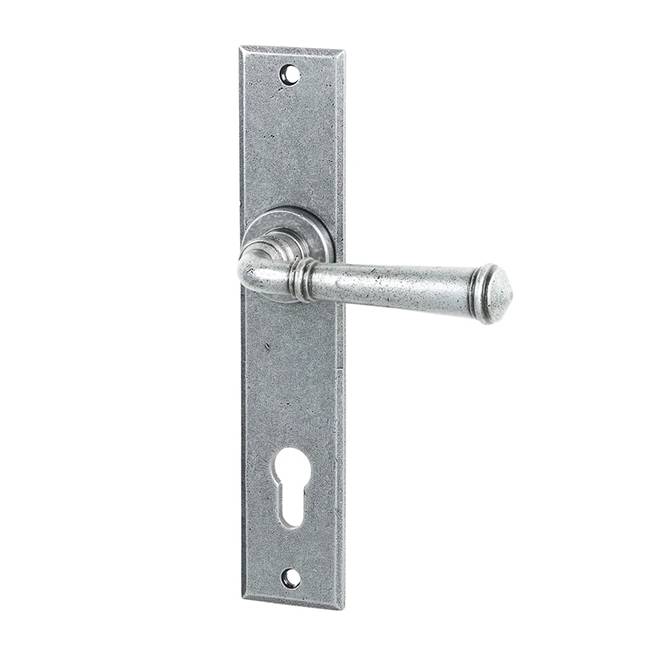

Pewter Regency Multipoint Door Handle

Do you need sprung or unsprung handles?

Sprung handles contain springs that help return the levers to horizontal. These may sit in separate cassettes behind the backplates or within the handle assembly. Unsprung handles depend on suitable springing elsewhere in the mechanism.

Match the handle’s spring arrangement to the lock manufacturer’s requirements. A spring cassette is not a universal add-on, and a stronger spring is not a substitute for diagnosing a damaged gearbox or binding mechanism.

Our Armor-Coat sprung multipoint handles include cassettes behind their backplates. Check the selected style’s dimensions and handing before ordering.

Choosing a style and finish

Once compatibility is established, choose a lever that feels comfortable and a finish suitable for the exposure. Check maintenance instructions, particularly near the coast, and compare finishes with your letterplate and knocker.

For example, our Gio multipoint handles offer a sprung solid-brass design in five finishes, with left- and right-handed versions. Browse the wider multipoint door handle collection and use each product’s Dimensions drawing to check the fit.

A decorative finish or euro-cylinder cut-out is not a security rating. Check any claimed certification for the exact model and preserve the door’s required specification. For fire or escape doors, confirm proposed changes with the door supplier or a competent specialist.

What if the existing handle is loose or stiff?

A loose backplate, drooping lever and stiff lock are different symptoms. If the lock works with the door open but struggles when closed, alignment may be involved. Replacement handles alone may not solve it.

Use our multipoint handle troubleshooting guide before ordering. If a compatible replacement is needed, follow our multipoint handle fitting guide, testing operation with the door open before closing it.

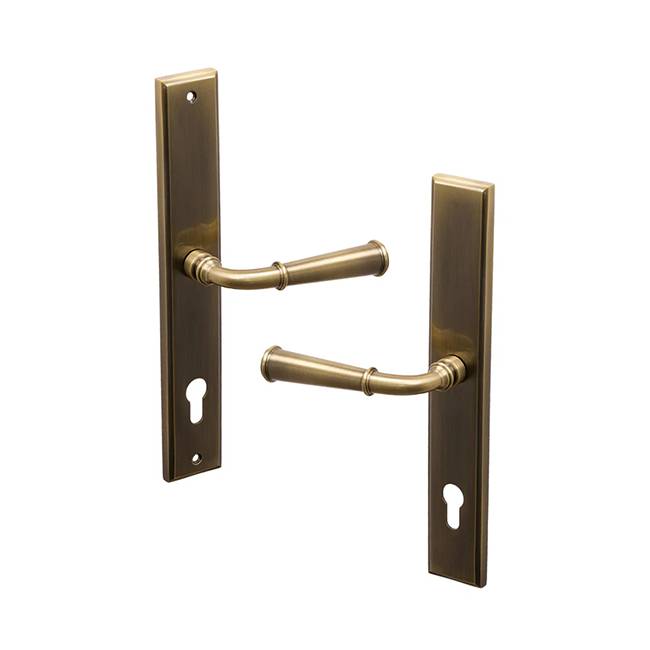

Aged Brass Colonial Multipoint Door Handle

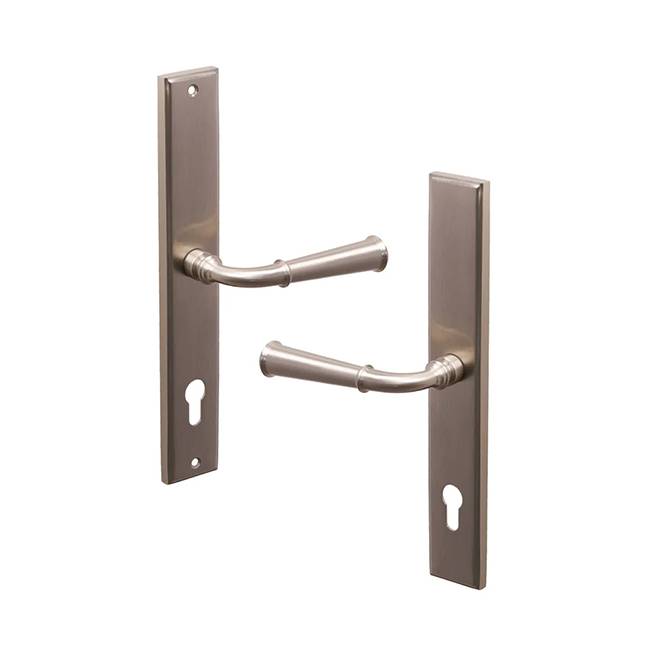

Satin Nickel Colonial Multipoint Door Handle

Conclusion

Start with how your door operates, then match the centres, fixings, spindle and spring arrangement. With those checks complete, you can choose the appearance confidently. If the drawing leaves anything unclear, contact us with photographs and measurements before ordering.

Frequently asked questions

Are multipoint door handles universal?

No. PZ centres, fixing positions, spindle arrangement, springing and door thickness must all suit the lock and door. Even handles advertised as universal have compatibility limits.

Does lifting the handle lock the door?

On a conventional lift-lever system, lifting engages the additional locking points, but turning the key is normally needed to complete locking. Automatic and other mechanisms differ; follow your lock’s instructions.

Can I replace the handles without replacing the lock?

Often, yes, provided the lock works correctly and the new handles match its dimensions and operating requirements. Changing the handles does not repair a faulty lock.

What does 92 mm PZ mean?

It describes the distance between the handle spindle centre and the centre of the euro cylinder’s circular key-plug section. It is not the screw spacing, backplate length or lock backset.
